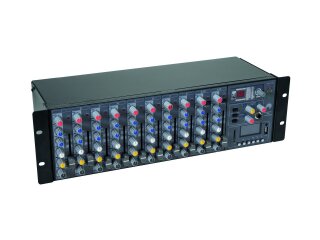

Compact all-rounderWhether it is used as small live mixer, recording studios or permanent installations-the RM--1422FX is the right answer for your 19" rack. Along with a full-fledge audio mixer, you'll get an FX unit, an MP3 player for external USB and SD storage media, and most importantly, a USB audio interface for recordings and playback with your computer in the smallest of spaces.
PRO 19" mixer with 12 channels, DSP FX unit and MP3 player
- Built-in USB audio interface allows recordings and playback of digital audio files with a computer (PC and Mac)
- 6 mono input channels with gain control, 2-way EQ, pan control and channel fader
- 2 stereo input channels with 2-way EQ, balance control and channel fader
- 8 channel inserts
- Tape input and output
- Separate main mix and control room outputs
- 2 AUX send outputs
- Adjustable headphones output
- +48 V phantom power, can be switched centrally
- 4-digit stereo LED level display
- Digital signal processor 24 bit with 16 effects
- Monochrome 2 digit 7-segment LED display
- (19") 48.3 cm rack installation 3 U
- For application areas such as: Clubs/dancing school; stage; theater; concerts/FoH's; rental
audio player
- Control via IR remote control
- Monochrome LCD display
Package contents
- 1 x mixer, 1 x user manual, 1 x power cord, 1 x remote control, 1 x battery
| Power supply: |
100-240 V AC, 50/60 Hz |
| Power consumption: |
27 W |
| Protection class: |
Protection class I |
| Power connection: |
Mains input via IEC connector (M) mounting version power supply cord with safety plug (provided) |
| Device fuse: |
5 x 20 mm, T 0,5 A fuse replaceable |
| Frequency range: |
20 - 20000 Hz |
| S/N ratio: |
>89 dB |
| THD: |
<0,05 % at 1 kHz |
| DSP: |
Digital signal processor 24 bit with 16 effects |
| Audio player: |
USB + SD |
| Display type: |
Monochrome 2 digit 7-segment LED display |
| Control elements: |
Phantom power switch, audio player, encoder |
| Status LED: |
Power, master level meter, clip, phantom power |
| Connections: |
Input: microphone via 8 x 3-pin XLR
Input: line via 12 x 6.3 mm jack socket (mono) mounting version
Input: 2-Track via 1 x stereo RCA
Input: AUX returns via 2 x 6.3 mm jack socket (mono) mounting version
Output: AUX sends via 2 x 6.3 mm jack socket (stereo) mounting version
Output: 2-Track via 1 x stereo RCA
Output: master via 2 x 3-pin XLR
Output: headphones via 1 x 6.3 mm jack socket (stereo) mounting version
Output: control room via 2 x 6.3 mm plug (unbal.)
Insert: 8 x 6.3 mm jack socket (stereo) mounting version
Link: line via 1 x USB B (F) mounting version |
| Channels: |
Input chanel: 8 x mono via XLR or jack, channel control via fader, 2-band tone control EQ ±15dB at 80Hz/12kHz, 2 Send/AUX, gain control, panoramacontol
Input chanel: 1 x stereo with line-USB switch via jack, channel control via fader, 2-band tone control EQ ±15dB at 80Hz/12kHz, 2 Send/AUX, gain control, balancecontrol
Input chanel: 1 x stereo with line-player switch via jack, channel control via rotary dial, 2-band tone control EQ ±15dB at 80Hz/12kHz, 2 Send/AUX, gain control, balancecontrol
Master output: 1 x stereo via XLR, channel control via rotary dial
Headphones output: 1 x stereo via jack, channel control via rotary dial |
| Material: |
Metal |
| Color: |
Black |
| Housing design: |
(19") 48.3 cm rack installation 3 U |
| Dimensions: |
Width: 48,3 cm
Depth: 18 cm
Height: 13,35 cm |
| Weight: |
4,07 kg |
| Remote control |
| Battery: |
1 x button cell 3.0 V CR2025 lithium manganese built-in |
| Audio player |
| Control: |
IR remote control |
| Display type: |
Monochrome LCD display |
| Available storage media: |
SD cards/USB devices |
| USB port: |
1 x USB 1.1, type B
1 x type A |
| Item information |
Value |
| Shipping weight: |
6,00 kg
|
| Item weight: |
4,65 kg
|
| Dimensions
( Length × Width × Height ):
|
205,00 × 53,00 × 245,00 cm |
