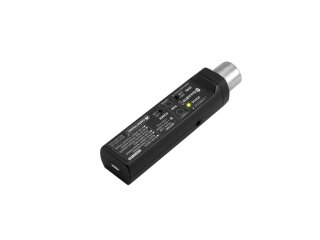

QuickBTR-5.0 is a portable Bluetooth receiver that allows you to stream audio signals wirelessly from your Bluetooth devices to mixers or powered speakers. With QuickBTR-5.0, you can simply add Bluetooth streaming to any live sound setup. The latest Bluetooth 5.0 technology with aptX HD support ensures fast and stable wireless connections and high-quality audio. The stereo audio stream is output as a mono signal via the XLR plug or as a stereo signal via the 3.5 mm TRS jack. You can also wirelessly link two QuickBTR-5.0 together for stereo speaker setups. Setup is simple: plug QuickBTR-5.0 into the XLR input of a mixer or powered speaker, pair your Bluetooth audio device and start playing! The internal battery keeps the receiver running for over 8 hours. Charging is via any USB power source and the included micro USB cable.
Portable Bluetooth receiver with XLR output, aptX and stereo link mode
- Add Bluetooth capability to any speaker or mixer
- Eliminates troublesome cable runs
- Stereo link mode: pair two receivers for cable-free stereo playback
- Output level switchable: 0 dBu, -20 dBu
- Supported codecs: AptX, aptX HD, AAC, SBC
- 2.4 GHz license-free worldwide
- Operating range up to 30m with line-of-sight
- For application areas such as: Wedding/gala/events; mobile use; mobile djs / entertainer; restaurants, bars and hotels; small rental
battery pack
- Battery operation up to 8h
- Cordless, flexible and versatile
Package contents
- 1 x receiver, 1 x USB cable, 1 x user manual
| Type: |
Audio transmission |
| Power supply: |
5V DC 500 mA |
| Power connection: |
Battery/battery pack built-in
Mains input via micro USB (F) mounting version power supply cord for USB A mains connection (provided) |
| Cable length: |
0,6 m |
| S/N ratio: |
>75 dB |
| Bluetooth: |
Version: 5,0 class 2
Profiles: A2DP |
| Bluetooth device name: |
Pro Audio BT |
| Supported codecs: |
AptX, aptX HD, AAC, SBC |
| Range: |
Range up to 30m with line-of-sight |
| Frequency band: |
2.4 GHz |
| Modulation: |
GFSK |
| Status LED: |
Power, pairing, slave mode, signal, charge status indicator |
| Connections: |
Output: 1 x 3-pin XLR (M) mounting version
Output: 1 x 3.5 mm jack (stereo) mounting version |
| Channels: |
Input chanel: 1 x stereo |
| Material: |
Plastic |
| Color: |
Black |
| Dimensions: |
Width: 2,6 cm
Depth: 2,7 cm
Height: 11 cm |
| Weight: |
0,08 kg |
| Battery pack |
| Battery pack type: |
1 x lithium ion 3,7 V, 300 mAh, 1,1 Wh |
| Battery pack: |
Battery operation up to 8h |
| Item information |
Value |
| Shipping weight: |
0,20 kg
|
| Item weight: |
0,14 kg
|
| Dimensions
( Length × Width × Height ):
|
35,00 × 155,00 × 95,00 cm |
