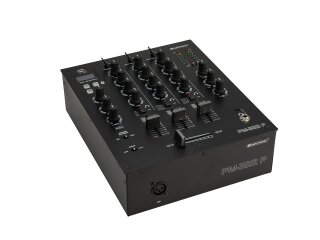

3-channel DJ mixer with Bluetooth and MP3 player
- 3 input channels with gain control, 3-band equalizer, cue button and channel fader
- DJ microphone channel with level control and 2-band equalizer
- Pre-fader listening to all input channels and the master output via adjustable stereo headphones output
- Crossfader with adjustable curve and reverse function
- Master channel with level control and 6-digit stereo LED level meter, switchable between master and PFL signal
- 6-digit stereo LED level meter
- 6 line and 2 phono inputs via RCA jacks
- Balanced XLR and RCA outputs
- Record output, independent of the master
- Control via Bluetooth
- LCD display
- Operating range up to 10m with line-of-sight
- Desktop console housing
- For application areas such as: Party room; mobile djs / entertainer; mobile use
Package contents
- 1 x mixer, 1 x user manual, 1 x power cord, 1 x RCA cable, 1 x declaration of conformity
| Power supply: |
100-240 V AC, 50/60 Hz |
| Power consumption: |
25 W |
| Protection class: |
Protection class II |
| Power connection: |
Mains input via C8 (M) "figure 8" mounting version power supply cord with Euro plug (provided) |
| Control: |
Bluetooth |
| Bluetooth: |
Version: 4,2 + EDR
Profiles: A2DP, AVRCP |
| Bluetooth device name: |
PM-322P |
| Audio player: |
USB + Bluetooth |
| Range: |
Range up to 10m with line-of-sight |
| Carrier frequency: |
2,4 GHz |
| Housing color: |
Black |
| Display type: |
LCD display |
| Control elements: |
Audio player, crossfader, cue mix function, source selector, crossfade curve switch; crossfade reverse switch |
| Status LED: |
Switchable master level meter, clip, CUE, power |
| Connections: |
Input: line via 4 x stereo RCA
Input: line/phono via 2 x stereo RCA
Input: audio player via 1 x USB A (F) mounting version
Input: microphone via 1 x 6.3 mm jack socket (mono) mounting version
Output: master via 2 x 3-pin XLR
Output: master via 2 x stereo RCA
Output: headphones via 1 x 6.3 mm jack socket (stereo) mounting version |
| Channels: |
Input chanel: 1 x stereo with line-line-player switch via RCA or player, channel control via fader, 3-band tone control EQ, gain control, CUE switch
Input chanel: 2 x stereo with line-line/phono switch via RCA, channel control via fader, 3-band tone control EQ, gain control, CUE switch
Microphon chanal: 1 x mono via jack, channel control via rotary dial, 2-band tone control EQ, cue mix function
Master output: 1 x stereo via XLR or RCA, channel control via rotary dial
Headphones output: 1 x stereo via jack, channel control via rotary dial |
| Music format: |
MP3, WAV; WMA |
| USB port: |
Type A |
| Housing design: |
Desktop console housing |
| Dimensions: |
Length: 28,3 cm
Width: 23 cm
Height: 10,7 cm |
| Weight: |
2,58 kg |
| Audio player |
| Available storage media: |
USB devices max. 32GB (FAT 32) |
| Item information |
Value |
| Shipping weight: |
4,10 kg
|
| Item weight: |
3,17 kg
|
| Dimensions
( Length × Width × Height ):
|
14,00 × 31,00 × 31,00 cm |
