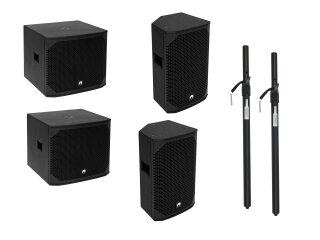

2x active 18" PA bassreflex subwoofer with 2x active speaker with 12" woofer incl. distance tube
Variable distance tube, M20 thread, height adjustable 75-130 cm, max. load 30 kg
Weight: |
105,50 kg |
OMNITRONIC AZX-118A PA Subwoofer active 400W |
Power supply: |
230 V AC, 50 Hz |
Power consumption: |
650 W |
Protection class: |
Protection class I |
Power connection: |
Mains input via IEC connector (M) mounting version power supply cord with safety plug (provided) |
Power: |
Rated: 400W RMS |
Frequency range: |
40 - 250 Hz |
Sensitivity: |
95 dB (1W/1m) |
Attachment system: |
Flange: M20 thread |
Circuitry: |
Class D |
Control elements: |
Phase reversal switch |
Controls: |
Limiter |
Status LED: |
Limit, power, signal |
Connections: |
Input: line via 2 x 3-pin XLR Output: line via 2 x 3-pin XLR Output: high-pass via 2 x 3-pin XLR |
Crossover frequency: |
80-200 Hz |
Speaker: |
1 x woofer 18" Basket material: Steel Voice coil lows 2,5" |
Type of speaker: |
Subwoofer |
Type of construction: |
Vented |
Carrying handle: |
1 pc/pcs |
Material: |
MDF (Medium-density fiberboard), 15 mm |
Color: |
Black, textured coating, painted |
Dimensions: |
Width: 61,3 cm Depth: 61,3 cm Height: 54 cm |
Weight: |
32,70 kg |
OMNITRONIC AZX-212A 2-Way Top active 250W |
Power supply: |
230 V AC, 50 Hz |
Power consumption: |
650 W |
Protection class: |
Protection class I |
Power connection: |
Mains input via IEC connector (M) mounting version power supply cord with safety plug (provided) |
Power: |
Rated: 200W RMS LF Rated: 50W RMS HF |
Frequency range: |
55 - 20000 Hz |
Sensitivity: |
95 dB (1W/1m) |
Attachment system: |
Dual flange: Ø 35mm (0°/5°) |
Flying points: |
7 x M10 thread |
Circuitry: |
Class D Biamp |
Control elements: |
Power switch, Input sensitivity switch, tone control, level control |
Controls: |
Limiter |
Status LED: |
Limit, power, signal |
Connections: |
Input: 1 x 3-pin XLR/6.35mm jack (F) combination socket (mounting version) Output: line via 1 x 3-pin XLR |
Input channels: |
1 x mono with Mic-line switch via Combination socket (XLR/jack), channel control via Rotary dial |
Equalizer: |
Master: 1 x 2-band tone control |
Speaker: |
Woofer 12" with ferrit magnet Basket material: Steel Conematerial: Cardboard/paper Voice coil lows 2" Voice coil compression tweeter highs 1,35" |
Type of speaker: |
Compact cabinet speaker |
Carrying handle: |
1 pc/pcs |
Material: |
MDF (Medium-density fiberboard), 15 mm |
Color: |
Black, textured coating, painted |
Dimensions: |
Width: 37 cm Depth: 35,2 cm Height: 62,2 cm |
Weight: |
19,15 kg |
OMNITRONIC Distance Tube Subwoofer/Satellite M20 |
Maximum carrying capacity: |
30 kg |
Tube diameter sector: |
41 - 35 mm |
Height: |
Maximum: 130 cm Minimum: 75 cm |
Attachment system: |
Ø 35mm |
Type (general stands): |
Distance tube |
Color: |
Black |
Thread: |
M20 thread |
Weight: |
900 g |
