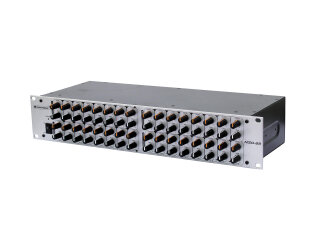

The OMNITRONIC MZD-88 is an audio mixer with an analog matrix of 8 input and 8 outputs which allows for multiple output configurations and inputs mixing. The 8 outputs are divided in 4 groups. Thus it's possible to supply 4 different PA zones with a stereo output by routing different input signals to these zones without having to change the cable configuration. It's also possible to obtain 8 outputs with different mixing as every input has its own level and PAN controls. Perfect for any place where multi-zone or multi-room solutions are required, just like in theme parks, conference centers, schools or as the case may be. By the way, the MZD-88 could also be used for personal monitoring.
8-channel audio mixer with 8 outputs and matrix
- Matrix input assignment: 8 audio inputs are freely assignable to each of the 8 outputs
- Inputs and outputs via balanced XLR connectors
- (19") 48.3 cm rack installation 2 U
- For application areas such as: Installation; restaurants, bars and hotels; sports centres/gyms
Package contents
- 1 x device, 1 x user manual, 1 x power cord
| Power supply: |
115/230 V AC, 50/60 Hz |
| Power consumption: |
10,00 W |
| Power connection: |
Mains input via IEC connector (M) mounting version power supply cord with safety plug (provided) |
| Frequency range: |
20 - 20000 Hz |
| Impedance: |
Input: 10 kOhm |
| Gain: |
12 dB |
| Dynamic range: |
100 dB |
| Max. level: |
Input: +21 dBu |
| Housing design: |
(19") 48.3 cm rack installation 2 U |
| Dimensions: |
Width: 48,3 cm
Depth: 19,5 cm
Height: 8,9 cm |
| Weight: |
3,60 kg |
| Item information |
Value |
| Shipping weight: |
5,50 kg
|
| Item weight: |
4,25 kg
|
| Dimensions
( Length × Width × Height ):
|
13,00 × 55,00 × 255,00 cm |
