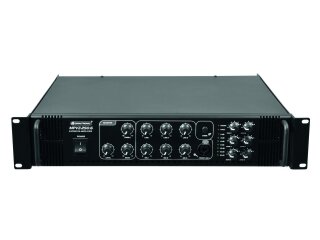

6 zone PA mixing amplifier adjustable zones, 250 W RMS
- Comfortable control of PA speakers via 6-zone technology
- 6 PA zone outputs with separate 5-step level controls
- Output for low-impedance speakers (4-16 ohms)
- 2 rear microphone inputs (6.3 mm jack, unbal.)
- 1 front microphone input (combination XLR/6.3 mm jack, unbal.) with adjustable priority circuit
- All microphone inputs with separate level controls
- 3 line inputs (stereo RCA) with separate level controls
- 1 line output (stereo RCA)
- Chime, switchable
- Treble and bass control for the output signal
- 7-digit LED level meter
- Master control for the output signal
- The device is cooled by temperature-controlled fan
- (19") 48.3 cm rack installation 2 U
- For application areas such as: Installation; restaurants, bars and hotels; sports centres/gyms
Package contents
- 1 x amplifier, 1 x user manual
| Power supply: |
230 V AC, 50 Hz |
| Power consumption: |
500,00 W |
| Output power: |
250 W RMS |
| Output current: |
Max. 2,5 A |
| Power connection: |
Fixed power supply cord with safety plug |
| Frequency range: |
80 - 16000 Hz |
| S/N ratio: |
>75 dB microphone
>85 dB line |
| THD: |
<0,5 % at 1 kHz |
| Cooling: |
Temperature-controlled fan |
| Impedance: |
4 ohms; 8 ohms; 16 ohms; public address systems 100V; Public address systems 70V |
| Zone output: |
6 adjustable zones |
| Circuitry: |
Class AB |
| Controls: |
Current limiting; short-circuit; power on/off transient; power on/off transient; Overvoltage; short-circuit |
| Status LED: |
Power, fault, level meter |
| Connections: |
Input: microphone via 1 x 3-pin XLR/6.35mm jack (F) combination socket (mounting version)
Input: microphone via 2 x 6.3 mm plug (unbal.)
Input: line via 3 x stereo RCA 0,3 V
Output: line via 1 x stereo RCA
Output: speaker via screw terminal |
| Equalizer: |
Master: 1 x 2-band tone control mono |
| Housing design: |
(19") 48.3 cm rack installation 2 U |
| Dimensions: |
Width: 48,3 cm
Depth: 38,5 cm
Height: 8,9 cm |
| Weight: |
11,15 kg |
| Item information |
Value |
| Shipping weight: |
16,60 kg
|
| Item weight: |
12,75 kg
|
| Dimensions
( Length × Width × Height ):
|
185,00 × 555,00 × 475,00 cm |
