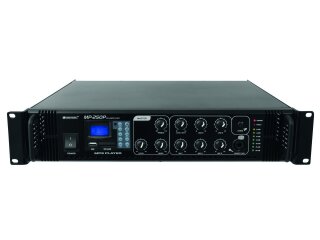

PA mixing amplifier with audio player,IR remote control, 250 W RMS
- SD card slot and USB port
- Folder navigation and repeat functions (1, All)
- 3 microphone inputs (6.3 mm jack, unbal.) with separate level controls
- Microphone input 3 with adjustable priority circuit
- 3 line inputs (stereo RCA) with separate level controls
- 1 line output (stereo RCA)
- Chime, switchable
- Treble and bass control for the output signal
- 7-digit LED level meter
- Master control for the output signal
- The device is cooled by cooling fan
- Control via IR remote control
- (19") 48.3 cm rack installation 2 U
- For application areas such as: Installation; restaurants, bars and hotels; sports centres/gyms
Package contents
- 1 x user manual, 1 x amplifier, 1 x remote control, 1 x battery
| Power supply: |
230 V AC, 50 Hz |
| Power consumption: |
500,00 W |
| Output power: |
250 W RMS |
| Power connection: |
Fixed power supply cord with safety plug |
| Frequency range: |
80 - 14000 Hz |
| S/N ratio: |
>75 dB microphone
>85 dB line |
| THD: |
<0,5 % at 1 kHz |
| Cooling: |
Cooling fan |
| Impedance: |
Public address systems 100V; 4-16 ohms; Public address systems 70V |
| Control: |
IR remote control |
| Audio player: |
USB + SD |
| Circuitry: |
Class AB |
| Controls: |
Power on/off transient; Overvoltage; short-circuit |
| Connections: |
Input: microphone via 2 x 6.3 mm plug (unbal.)
Input: microphone via 1 x 3-pin XLR/6.35mm jack (F) combination socket (mounting version)
Input: line via 3 x stereo RCA 0,3 V
Output: line via 1 x stereo RCA 0,3 V
Output: speaker via screw terminal |
| Equalizer: |
Master: 1 x 2-band tone control mono |
| Music format: |
MP3 |
| Number of files: |
Max. 999 |
| Available storage media: |
USB devices/SD cards max. 32GB (FAT 32) |
| Housing design: |
(19") 48.3 cm rack installation 2 U |
| Dimensions: |
Width: 48,3 cm
Depth: 40 cm
Height: 8,9 cm |
| Weight: |
10,30 kg |
| Remote control |
| Battery: |
1 x button cell 3.0 V CR2025 lithium manganese built-in |
| Item information |
Value |
| Shipping weight: |
15,50 kg
|
| Item weight: |
11,95 kg
|
| Dimensions
( Length × Width × Height ):
|
18,00 × 54,00 × 49,00 cm |
