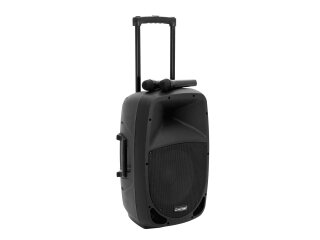

Portable PA system with 2 UHF receiver units, audio player and Bluetooth
- Portable all-in-one PA system with 45 watts output power
- 3-channel power mixer and 2-way speaker system with a 30 cm woofer (12")
- Adjustable reverb effect for wireless microphones/microphone channels
- Graphic 5-band EQ, master volume control
- 2 master outputs (mono)
- Terminals for external 12V battery operation (e.g. car battery)
- Control via Bluetooth
- Trolley
- For application areas such as: Theater; mobile use; wedding/gala/events; product presentations and lectures
- Black metal grille
- 2 Rugged carrying handles
- Application possibility: Standing; monitoring; on stand
- Integrated automatic charging of the battery and status indicator
battery pack
- Battery pack must be ordered separately
- Battery operation up to 5h
- Cordless, flexible and versatile
audio player
- Control via IR remote control
- 2.4 GHz license-free worldwide
- Bluetooth: operating range up to 10m
microphone
- Polar pattern: Cardioid
- Operating range up to 30m
- Powered by a battery/battery pack
Package contents
- 1 x compact cabinet speaker, 2 x microphone, 2 x antenna, 1 x power cord, 1 x user manual, 1 x remote control
| Power supply: |
230 V AC, 50 Hz
Or
12V DC |
| Power consumption: |
75 W |
| Protection class: |
Protection class I |
| Output power: |
Max. 90 W
45 W RMS |
| Power connection: |
Mains input via IEC connector (M) mounting version power supply cord with safety plug (provided)
Battery/battery pack (optional)
Mains input via spring terminal |
| Device fuse: |
5 x 20 mm, T 1 A fuse replaceable |
| Frequency range: |
62 - 18000 Hz |
| Sensitivity: |
90 dB (1W/1m) |
| Max. SPL: |
109 dB |
| Control: |
Bluetooth |
| Bluetooth device name: |
OMNITRONIC |
| Frequency stability: |
± 0,005 % |
| Frequency selection: |
Fixed frequencies |
| Attachment system: |
Flange: Ø 35mm |
| Control elements: |
Power switch, Master control, level control per channel, echo effect control, tone control; audio player |
| Status LED: |
Power, charge status indicator, clip, microphone |
| Connections: |
Antenna via 2 x BNC (F)
Input: microphone via 2 x 6.3 mm plug (unbal.)
Input: line via 1 x stereo RCA
Output: line via 2 x RCA (F) mounting version |
| Equalizer: |
Master: 1 x graphic equalizer 5-band stereo
Centre frequency: 100Hz/330Hz/1,1kHz/3,3kHz/6,8kHz |
| Speaker: |
1 x woofer 12"
Basket material: steel
Conematerial: cardboard/paper
1 x horn 1" |
| Type of speaker: |
Compact cabinet speaker |
| Carrying handle: |
2 pc/pcs |
| Transport aid: |
Trolley |
| Switch: |
On/off switch |
| Material: |
Plastic |
| Color: |
Black |
| Dimensions: |
Width: 36 cm
Depth: 32 cm
Height: 59 cm |
| Weight: |
10,85 kg |
| Microphone |
| Power supply: |
3V DC |
| Power connection: |
Battery/battery pack |
| Capsule type: |
Dynamic |
| Polar pattern: |
Cardioid |
| Battery: |
2 x Mignon (AA) (not included) |
| Range: |
Range up to 30m |
| Carrier frequency: |
830 MHz; 864 MHz |
| RF power output: |
10 mW |
| Material: |
Plastic |
| Dimensions: |
Length: 25,0 cm
Diameter: Ø 3,2 cm |
| Weight: |
0,17 kg |
| Remote control |
| Battery: |
1 x button cell 3.0 V CR2025 lithium manganese built-in |
| Audio player |
| Control: |
IR remote control |
| Audio player: |
USB + SD + Bluetooth |
| Range: |
Bluetooth: range up to 10m |
| Frequency band: |
2.4 GHz |
| Music format: |
MP3, WMA |
| Available storage media: |
USB devices/SD cards max. 32GB (FAT 32) |
| Battery pack |
| Battery pack type: |
1 x lead 12 V, 7000 mAh, 84 Wh |
| Battery pack: |
Battery operation up to 5h
Recharging time 11h |
| Item information |
Value |
| Shipping weight: |
15,40 kg
|
| Item weight: |
11,85 kg
|
| Dimensions
( Length × Width × Height ):
|
65,00 × 42,00 × 35,00 cm |
