Weight: |
34,35 kg |
OMNITRONIC MAXX-1206 2-Way Top 6.5" 2x |
Power: |
Program: 200W Rated: 100W RMS |
Frequency range: |
100 - 17000 Hz |
Sensitivity: |
91 dB |
Max. SPL: |
115 dB |
Dispersion angle: |
90° x 60° |
Impedance: |
4 ohms |
Attachment system: |
Flange: Ø 35mm |
Flying points: |
3 x M8 thread |
Connections: |
Input: speaker via 1 x speaker built-in socket (F) |
Speaker: |
1 x woofer 6,5" Basket material: Steel Conematerial: Cardboard/paper 1 x compression tweeter highs 1" |
Type of speaker: |
Compact cabinet speaker |
Carrying handle: |
1 pc/pcs |
Material: |
MDF (Medium-density fiberboard), 16 mm |
Color: |
Black, textured coating, painted |
Dimensions: |
Width: 20,4 cm Depth: 19 cm Height: 36,2 cm |
Weight: |
12,70 kg |

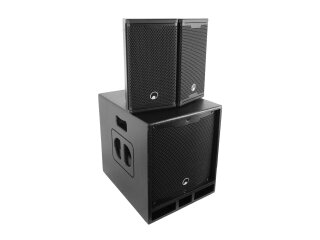

OMNITRONIC MAXX-1206DSP 2.1 Active Subwoofer 12" |
Power supply: |
230 V AC, 50 Hz |
Power consumption: |
500 W |
Protection class: |
Protection class I |
Power connection: |
Mains input via IEC connector (M) mounting version power supply cord with safety plug included |
Device fuse: |
5 x 20 mm, T 4 A Fuse replaceable |
Power: |
Rated: 250W RMS LF Rated: 2x 100W RMS HF |
Frequency range: |
38 - 250 Hz Bass 100 - 17000 Hz Top |
Sensitivity: |
97 dB |
Max. SPL: |
119 dB |
DSP: |
Digital signal processor |
DSP presets: |
FLAT; DJ; LIVE |
Control: |
Bluetooth |
Bluetooth device name: |
OMNITRONIC MAXX1206 |
Attachment system: |
Flange: M20 thread |
Circuitry: |
Class D |
Control elements: |
Power switch, level control, Input sensitivity switch, connect, tone control |
Controls: |
Limiter |
Status LED: |
Power, signal, limit, pairing, DSP presets |
Connections: |
Input: line via 1 x stereo RCA Input: line via 2 x 3-pin XLR/6.35mm jack (F) combination socket (mounting version) Output: line via 2 x 3-pin XLR Output: speaker via 2 x speaker built-in socket (F) |
Input channels: |
1 x stereo via XLR or RCA or bluetooth, channel control via Rotary dial |
Speaker: |
1 x woofer 12" with ferrit magnet Basket material: Steel Conematerial: Cardboard/paper |
USB port: |
1 x Typ C, 2 A |
Type of speaker: |
Subwoofer |
Type of construction: |
Vented |
Transport aid: |
Rubber feet Wheels optional |
Material: |
MDF (Medium-density fiberboard), 16 mm |
Color: |
Black, textured coating, painted |
Dimensions: |
Width: 38,4 cm Depth: 47,4 cm Height: 45,8 cm |
Weight: |
19,10 kg |
