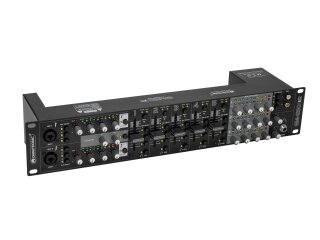

Multifunctional 5+2-channel mixer with 3 zones, black
- 5 input channels with recessed gain controls on the rear panel, signal LED and smooth channel faders
- 3 adjustable master outputs with 3-way equalizer and 10-digit stereo LED level meter
- (19") 48.3 cm rack installation 2 U
- For application areas such as: Installation; restaurants, bars and hotels; clubs/dancing school
Package contents
- 1 x mixer, 1 x user manual, 1 x power cord, 1 x RCA cable
| Power supply: |
230 V AC, 50 Hz |
| Protection class: |
Protection class II |
| Power connection: |
Power supply cord with Euro plug (provided) |
| Frequency range: |
20 - 20000 Hz |
| S/N ratio: |
>60 dB line
>70 dB phono |
| THD: |
Line/phono <0,02 % at 1 kHz |
| Gain: |
Microphone 52 dB
Line 17 dB
Phono 53 dB |
| Housing color: |
Black |
| Zone output: |
3 adjustable zones |
| Control elements: |
Power switch, regular talkover, source selector |
| Status LED: |
Signal, chanal level meter, master level meter, peak, chanal source; CUE, talkover, ON AIR, routing |
| Connections: |
Input: microphone via 2 x 3-pin XLR/6.35mm jack (F) combination socket (mounting version)
Input: line/phono via 2 x stereo RCA
Input: line via 8 x stereo RCA
Output: master via 3 x 3-pin XLR
Output: master via 3 x stereo RCA
Output: rec. via 2 x stereo RCA
Output: headphones via 1 x 6.3-mm-jack (bal.) |
| Channels: |
Input chanel: 2 x stereo with line-line/phono switch via RCA, channel control via fader, 3-band tone control EQ, routing master bus switch, gain control, source selector, CUE switch
Input chanel: 3 x stereo with line-line switch via RCA, channel control via fader, routing master bus switch, gain control, source selector, CUE switch
Microphon chanal: 2 x mono via Combination socket (XLR/jack), channel control via rotary dial, ON AIR switch, routing master bus switch, talkover switch
Master output: 3 x stereo via XLR or RCA, channel control via rotary dial, 3-band tone control EQ
Rec. output: 1 x stereo via RCA, routing master bus switch
Headphones output: 1 x stereo via jack, channel control via rotary dial, cue mix function |
| Housing design: |
(19") 48.3 cm rack installation 2 U |
| Dimensions: |
Width: 48,3 cm
Depth: 14,8 cm
Height: 8,9 cm |
| Weight: |
3,10 kg |
| Item information |
Value |
| Shipping weight: |
4,50 kg
|
| Item weight: |
3,46 kg
|
| Dimensions
( Length × Width × Height ):
|
185,00 × 50,00 × 14,00 cm |
