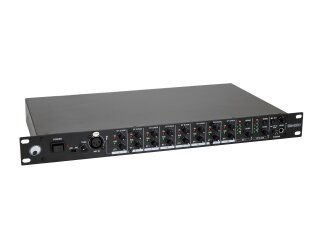

8-channel stereo mixer with 2 adjustable zone outputs, 19"
- 1 additional XLR microphone input in channel 1
- Nominal input level switchable between +4dBu and -10 dBV
- Signal and overload indicators in each channel
- 4-digit stereo level meter for each bus output
- (19") 48.3 cm rack installation 1 U
- For application areas such as: Installation; restaurants, bars and hotels; clubs/dancing school
Package contents
- 1 x mixer, 1 x user manual, 1 x power cord, 1 x RCA cable
| Power supply: |
115/230 V AC, 50/60 Hz |
| Power consumption: |
15 W |
| Protection class: |
Protection class I |
| Power connection: |
Power supply cord with safety plug (provided) |
| Device fuse: |
5 x 20 mm, T 1 A fuse replaceable |
| Frequency range: |
20 - 20000 Hz |
| S/N ratio: |
>92 dB line
>65 dB microphone |
| THD: |
Line <0,9 % at 1 kHz |
| Gain: |
Mic/line 18 dB |
| Housing color: |
Black |
| Control elements: |
Groundlift selector |
| Status LED: |
Power, master level meter, signal, clip |
| Connections: |
Input: line via 8 x 6.3-mm-jack (bal.)
Input: microphone via 1 x 3-pin XLR
Output: master via 2 x 6.3-mm-jack (bal.)
Output: AUX via 1 x 6.3-mm-jack (bal.)
Output: headphones via 1 x 6.3 mm jack socket (stereo) mounting version
Output: headphones via 1 x 3.5 mm jack (stereo) mounting version |
| Channels: |
Input chanel: 1 x mono + stereo with mic-line switch via XLR or jack, channel control via rotary dial, pre-post switch, gain control
Input chanel: 7 x stereo via jack, channel control via rotary dial, pre-post switch
Master bus input: 2 x stereo via jack, routing master bus switch
Master output: 2 x mono + stereo via XLR or RCA, channel control via rotary dial, stereo/mono switch
Master bus output: 1 x stereo via jack
Headphones output: 1 x stereo via jack, channel control via rotary dial, routing master bus switch |
| Housing design: |
(19") 48.3 cm rack installation 1 U |
| Dimensions: |
Width: 48,3 cm
Depth: 28,0 cm
Height: 4,4 cm |
| Weight: |
3,06 kg |
| Item information |
Value |
| Shipping weight: |
4,70 kg
|
| Item weight: |
3,65 kg
|
| Dimensions
( Length × Width × Height ):
|
11,00 × 50,00 × 325,00 cm |
