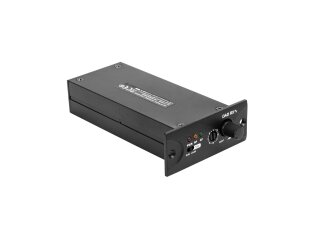

OMNITRONIC DAD Receiver Module

Receiver module for UHF frequencies (microphone + audio link signal)

For installation into the DAD-4RX 4-channel receiver housing
For retrofitting the MOM-10BT4 modular PA system
For wireless audio transmission with DAD transmitter modules and other components
16 selectable UHF frequencies (823-832 and 863-865 MHz)
LED display for indicating selected channel
LEDs for carrier and audio signal
UHF 823 - 832 MHz License-free and approved in large parts of Europe
UHF 863 - 865 MHz License-free and approved in Europe
Operating range up to 30m with line-of-sight

Package contents

59,38 €

incl. 20% VAT , plus (Standard)

Receiver module for UHF frequencies (microphone + audio link signal)

For installation into the DAD-4RX 4-channel receiver housing
For retrofitting the MOM-10BT4 modular PA system
For wireless audio transmission with DAD transmitter modules and other components
16 selectable UHF frequencies (823-832 and 863-865 MHz)
LED display for indicating selected channel
LEDs for carrier and audio signal
UHF 823 - 832 MHz License-free and approved in large parts of Europe
UHF 863 - 865 MHz License-free and approved in Europe
Operating range up to 30m with line-of-sight

Package contents

Type:	Receiver
Power supply:	12 V DC 170 mA
Number of channels:	1
Frequency range:	40 - 18000 Hz
S/N ratio:	>80 dB
THD:	<0,1 % at 1 kHz
Sensitivity:	-95 dB
Range:	Range up to 30m with line-of-sight
Frequency band:	UHF 823 - 832 MHz; UHF 863 - 865 MHz
Frequency stability:	± 0,001 %
Frequency selection:	16 Switchable frequencies
Control elements:	Frequency selector switch, level control, Squelch control
Status LED:	Power, signal, level meter
Color:	Black
Dimensions:	Width: 7,1 cm Depth: 13,9 cm Height: 3 cm
Weight:	90 g

Shipping weight:	0,18 kg
Item weight:	0,18 kg
Dimensions ( Length × Width × Height ):	45,00 × 22,00 × 12,00 cm
