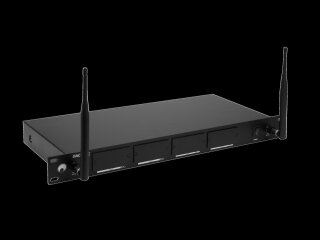

4-channel housing for wireless modules of the MOM and DAD series
- 4 insert slots for receiver and transmitter modules of the MOM and DAD series
- Supports the WMT/R-2M wireless system
- Balanced XLR output per channel
- 2 AUX inputs (3.5 mm jack) for channel 3 and 4
- Rugged metal housing
- UHF 823 - 832 MHz License-free and approved in large parts of Europe
- UHF 863 - 865 MHz License-free and approved in Europe
- (19") 48.3 cm rack installation 1 U
Package contents
- 1 x device, 2 x antenna, 1 x external mains adapter, 8 x screw, 1 x jack cable, 1 x user manual, 1 x declaration of conformity
| Type: |
Audio transmission |
| Power supply: |
100-240 V AC, 50/60 Hz
12V DC 1000 mA |
| Power consumption: |
Max. 6 W |
| Power connection: |
Mains input via coaxial power connector (M) mounting version power supply cord with AC adapter (provided) |
| Number of channels: |
4 |
| Frequency band: |
UHF 823 - 832 MHz; UHF 863 - 865 MHz |
| Connections: |
Input: line via 2 x 3.5 mm jack (stereo) mounting version
Output: microphone via 4 x 3-pin XLR (M) mounting version
Output: master via 1 x 6.3 mm plug (unbal.)
Antenna via 2 x BNC (F) |
| Switch: |
On/off switch |
| Material: |
Metal |
| Color: |
Black |
| Housing design: |
(19") 48.3 cm rack installation 1 U |
| Dimensions: |
Width: 48,1 cm
Depth: 24,5 cm
Height: 4,5 cm |
| Weight: |
2,50 kg |
| Item information |
Value |
| Shipping weight: |
3,80 kg
|
| Item weight: |
2,90 kg
|
| Dimensions
( Length × Width × Height ):
|
75,00 × 52,00 × 25,00 cm |
