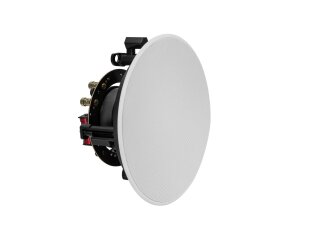

The models of the CST series are frameless in-ceiling speakers with a particularly discreet appearance for installation in hotels, restaurants, bars, foyers, training and conference rooms or shopping centers. The 2-way coaxial systems have a frequency response of up to 20 kHz, balanced sound and excellent speech intelligibility. The tweeter is protected against overload by a PTC and can be tilted 30 degrees to adapt to local conditions, as well as freely rotated by 360°. Secure mounting clamps allow for fast and easy attachment. The front grille is exchangeable.
2-way flush-mount coaxial speaker, LF: 6,5" HF: 1", 8 ohms, 40 W RMS, 12 cmØ 20,7 cm
- Excellent sound playback
- With passive 2-way crossover, PTC tweeter protection
- Swivel tweeter
- Level matching switch -3 dB/0 dB/+3 dB
- For speech and background music in indoor PA systems
- Scratchproof and shockproof
- White metal grille
- For application areas such as: Installation; restaurants, bars and hotels; sports centres/gyms
Package contents
- 1 x speaker, 1 x user manual
| Power: |
Program: 80W
Rated: 40W RMS |
| Frequency range: |
45 - 21000 Hz |
| Sensitivity: |
88 dB (1W/1m) |
| Max. SPL: |
107 dB |
| Dispersion angle: |
105° omnidirectional |
| Impedance: |
8 ohms |
| Speaker: |
1 x woofer 6,5"
Tweeter 1" |
| Type of speaker: |
Flush-mount speaker |
| Material: |
ABS Acrylonitrile butadiene styrene |
| Color: |
White, scratchproof and shockproof |
| Mounting dimensions: |
12 cm Ø 20,7 cm |
| Mounting depth: |
120 mm |
| Dimensions: |
Height: 12,5 cm
Diameter: Ø 24,8 cm |
| Weight: |
1,93 kg |
| Item information |
Value |
| Shipping weight: |
3,20 kg
|
| Item weight: |
2,45 kg
|
| Dimensions
( Length × Width × Height ):
|
165,00 × 28,00 × 28,00 cm |
