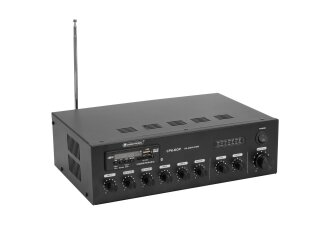

PA mixing amplifier with audio player,IR remote control and Bluetooth, 60 W RMS
- SD card slot and USB port
- FM tuner with auto scan
- 3 microphone inputs with separate level controls
- Mic 1 with phantom power and priority circuit
- Mic 2 and 3 switchable mic/line
- 2 line inputs with separate level controls
- 1 line output
- Treble and bass and master controls for the output signal
- 4-digit LED level meter
- Mains operation and 24 V emergency power operation
- Control via Bluetooth; IR remote control
- 2 U
- Desktop console housing
- For application areas such as: Installation; restaurants, bars and hotels; sports centres/gyms
Package contents
- 1 x amplifier, 1 x user manual, 1 x declaration of conformity, 1 x power cord, 1 x antenna, 1 x remote control, 1 x battery
| Power supply: |
230 V AC, 50 Hz
Or
24V |
| Power consumption: |
120 W |
| Output power: |
60 W RMS |
| Power connection: |
Mains input via IEC connector (M) mounting version power supply cord with safety plug (provided) |
| Impedance: |
4 ohms; 8 ohms; 16 ohms; public address systems 100V; Public address systems 70V |
| Control: |
Bluetooth; IR remote control |
| Audio player: |
USB + SD + Bluetooth + FM radio |
| Circuitry: |
Class D |
| Controls: |
Overload; short-circuit; limiter; overheat |
| Connections: |
Input: microphone via 1 x 3-pin XLR
Input: mic/line via 2 x 6.3 mm jack socket (stereo) mounting version
Input: line via 2 x stereo RCA
Output: line via 1 x stereo RCA 0,774 V
Output: speaker via screw terminal |
| Equalizer: |
Master: 1 x 2-band tone control |
| Music format: |
MP3 |
| Housing design: |
2 U
Desktop console housing |
| Dimensions: |
Width: 30,3 cm
Depth: 22 cm
Height: 9,1 cm |
| Weight: |
3,50 kg |
| Remote control |
| Battery: |
1 x button cell 3.0 V CR2025 lithium manganese built-in |
| Item information |
Value |
| Shipping weight: |
4,90 kg
|
| Item weight: |
3,75 kg
|
| Dimensions
( Length × Width × Height ):
|
145,00 × 35,00 × 27,00 cm |
