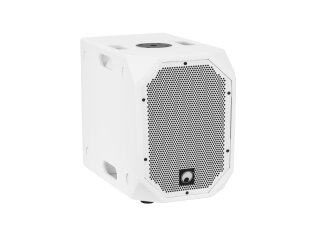

10" subwoofer with DSP and Bluetooth for the BOB series
- 10" bassreflex subwoofer with DSP and 900 watts RMS power
- Flexibly extendable with BOB-4 satellites for 2.1, 4.1 and 8.1 configurations
- DSP-controlled class D amplifier (300 W + 2 x 300 W)
- Separate volume control for subwoofer and satellites
- Stereo/mono selection
- Digital signal processor
- Control via Bluetooth
- For application areas such as: Mobile djs / entertainer; Trade fair and shop fitting; installation; home entertainment; restaurants, bars and hotels; product presentations and lectures
- 4 Rugged carrying handles
- DSP presets: FLAT; DJ; LIVE; SPEECH
- White metal grille with acoustic foam
Package contents
- 1 x bass, 1 x user manual, 1 x power cord, 2 x speaker cable, 4 x foot, 4 x screw, 1 x declaration of conformity
| Power supply: |
230 V AC, 50 Hz |
| Power consumption: |
1060 W |
| Protection class: |
Protection class I |
| Power connection: |
Mains input via IEC connector (M) mounting version power supply cord with safety plug (provided) |
| Power: |
Rated: 300W RMS LF
Rated: 2x 300W RMS HF |
| Frequency range: |
45 - 250 Hz |
| Sensitivity: |
100 dB |
| Max. SPL: |
125 dB |
| DSP: |
Digital signal processor |
| DSP presets: |
FLAT; DJ; LIVE; SPEECH |
| Control: |
Bluetooth |
| Bluetooth device name: |
Omnitronic BOB |
| Attachment system: |
2x M20 thread |
| Circuitry: |
Class D |
| Control elements: |
Phase reversal switch, level control per channel, power switch, connect, tone control |
| Controls: |
Softstart; short-circuit; limiter; Overvoltage; overheat |
| Status LED: |
Signal, power, limit, fault, DSP presets |
| Connections: |
Input: line via 2 x 3-pin XLR/6.35mm jack (F) combination socket (mounting version)
Output: speaker via 2 x speaker built-in socket (F)
Output: line via 1 x 3-pin XLR |
| Input channels: |
1 x stereo via combination socket or RCA or Bluetooth, channel control via rotary dial |
| Speaker: |
1 x woofer 10"
Basket material: steel
Conematerial: cardboard/paper
Voice coil lows 2" |
| Type of speaker: |
Subwoofer |
| Type of construction: |
Vented |
| Carrying handle: |
4 pc/pcs |
| Material: |
MDF (medium density fiberboard), 15 mm |
| Color: |
White, textured coating |
| Dimensions: |
Width: 30 cm
Depth: 47 cm
Height: 43 cm |
| Weight: |
17,00 kg |
| Speaker cable |
| Cable length: |
3 m |
| Item information |
Value |
| Shipping weight: |
23,50 kg
|
| Item weight: |
18,10 kg
|
| Dimensions
( Length × Width × Height ):
|
50,00 × 52,00 × 35,00 cm |
