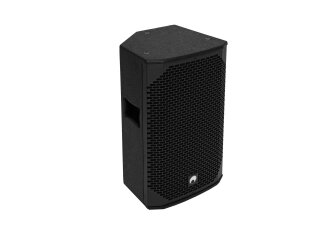

Active speaker with 12" woofer, 1,35" driver, 200 W RMS LF, 50 W RMS HF
- 2-way bass-reflex enclosure with 30 cm woofer and 3.5 cm titanium driver
- Balanced signal input XLR/6.3 mm jack, switchable mic/line
- HF adjustment -4 dB, -2 dB, 0 dB
- Black metal grille with acoustic foam
- Rugged carrying handle
- Application possibility: Standing; suspended; monitoring; on stand
- With rigging points
- Dual flange
- For application areas such as: Clubs/dancing school; installation; mobile use; mobile djs / entertainer; rental
Package contents
- 1 x user manual, 1 x power cord, 1 x compact cabinet speaker
| Power supply: |
230 V AC, 50 Hz |
| Power consumption: |
650 W |
| Protection class: |
Protection class I |
| Power connection: |
Mains input via IEC connector (M) mounting version power supply cord with safety plug (provided) |
| Power: |
Rated: 200W RMS LF
Rated: 50W RMS HF |
| Frequency range: |
55 - 20000 Hz |
| Sensitivity: |
95 dB (1W/1m) |
| Attachment system: |
Dual flange: Ø 35mm (0°/5°) |
| Flying points: |
7 x M10 thread |
| Circuitry: |
Class D Biamp |
| Control elements: |
Power switch, Input sensitivity switch, tone control, level control |
| Controls: |
Limiter |
| Status LED: |
Limit, power, signal |
| Connections: |
Input: 1 x 3-pin XLR/6.35mm jack (F) combination socket (mounting version)
Output: line via 1 x 3-pin XLR |
| Input channels: |
1 x mono with mic-line switch via Combination socket (XLR/jack), channel control via rotary dial |
| Equalizer: |
Master: 1 x 2-band tone control |
| Speaker: |
Woofer 12" with ferrit magnet
Basket material: steel
Conematerial: cardboard/paper
Voice coil lows 2"
Voice coil compression tweeter highs 1,35" |
| Type of speaker: |
Compact cabinet speaker |
| Carrying handle: |
1 pc/pcs |
| Material: |
MDF (medium density fiberboard), 15 mm |
| Color: |
Black, textured coating, painted |
| Dimensions: |
Width: 37 cm
Depth: 35,2 cm
Height: 62,2 cm |
| Weight: |
19,15 kg |
| Item information |
Value |
| Shipping weight: |
26,80 kg
|
| Item weight: |
20,60 kg
|
| Dimensions
( Length × Width × Height ):
|
68,00 × 43,00 × 41,00 cm |
