PRO Washlight with 40 W Osram Ostar RGBW LEDs, large zoom range and pixel control
Weight: |
76,90 kg |
FUTURELIGHT EYE-740 MK2 QCL Zoom LED Moving Head Wash |
Power supply: |
100-240 V AC, 50/60 Hz |
Power consumption: |
210 W |
IP classification: |
IP20 |
Protection class: |
Protection class I |
Power connection: |
Mains input via IP T-Con (M) mounting version power supply cord with safety plug |
Power output: |
IP T-Con (F) mounting version |
Device fuse: |
5 x 20 mm, T 2 A Fuse replaceable |
Lamp type: |
LED lamp |
LED: |
7 x 40 W 4in1 QCL RGBW (homogenous color mix) |
LED manufacturer: |
OSRAM |
Color temperature: |
2800K - 10000K adjustable |
Max. TILT movement: |
210° Exact positioning (16 bit resolution) Auto position correction (feedback) |
Max. PAN movement: |
540° Exact positioning (16 bit resolution) Auto position correction (feedback) |
Flash rate: |
1 - 16 Hz |
Equipment: |
Zoom motor-driven |
DMX channels: |
18; 25; 37; 26; 33; 45; 46; 53; 65 |
DMX input: |
3-pin XLR (M) mounting version 5-pin XLR (M) mounting version |
DMX output: |
3-pin XLR (F) mounting version 5-pin XLR (F) mounting version |
Cooling: |
Temperature-controlled fan |
Control: |
Stand-alone; Master/slave function; DMX; QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional); CRMX by LumenRadio upgradeable; RDM; Sound to light via Microphone |
Preprogrammed in: |
Light Captain |
Projection: |
Flicker-free |
Beam angle: |
1° - 48° |
Beam angle (1/2 peak): |
1 - 32° |
Beam angle (1/10 peak): |
5 - 48° |
Illuminance in Lux (lx): |
Narrow red (R) 3m: 6818 lx, 6m: 1758 lx Narrow green (G) 3m: 12807 lx, 6m: 3122 lx Narrow blue (B) 3m: 2513 lx, 6m: 21580 lx Narrow cold white (CW) 3m: 21580 lx, 6m: 5431 lx Narrow all 3m: 38576 lx, 6m: 9662 lx Wide red (R) 3m: 162 lx, 6m: 46 lx Wide green (G) 3m: 315 lx, 6m: 89 lx Wide blue (B) 3m: 85 lx, 6m: 25 lx Wide cold white (CW) 3m: 504 lx, 6m: 143 lx Wide all 3m: 915 lx, 6m: 259 lx |
Housing color: |
Black |
Attachment system: |
Omega bracket |
Display type: |
Multicolor LCD display battery buffering upgradeable |
Transport aid: |
Rubber feet |
Dimensions: |
Width: 28,6 cm Depth: 24,5 cm Height: 37,2 cm |
Weight: |
8,10 kg |
Noise classification: |
Class 1 (very slight noise, suitable for noise-sensitive environments) |

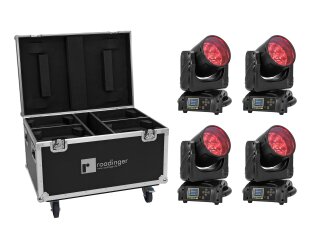

ROADINGER Flightcase 4x EYE-740 MK2 with wheels |
Maximum load: |
100 kg |
Aluminum profile frames: |
30 mm |
Case handle: |
4 pc/pcs |
Stop hinge: |
3 pc/pcs |
Lock: |
Butterfly lock: 2 pc/pcs |
Transport aid: |
4 x castors with 2 locking brakes |
Material: |
Plywood multi-layer glued, 7 mm |
Color: |
Black, laminated |
Inside dimensions: |
81 cm x 53,5 cm x 36,5 cm |
Device compartment: |
28 cm x 17,5 cm x 36,5 cm |
Accessory compartment: |
10,5 cm x 53,5 cm x 36 cm |
Dimensions: |
Width: 87 cm Depth: 60 cm Height: 63 cm |
Weight: |
39,35 kg |
