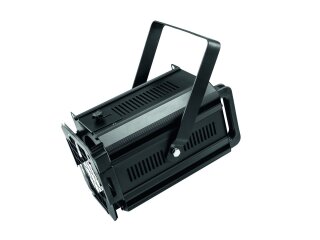

Theater spot for halogen lamps with 300 or 500 watts power
- Professional theatre spot with color filter frame and protective grille
- Impressive light output
- Robust version
- Easy lamp replacement
- Antihalo lens for punctual illumination (light inside the beam is brighter than outside)
- Focus manual
- The device is cooled by passive convection cooling
- Control via plug and play
- With a beam angle of 5° - 45°
- With mounting bracket
- Silent operation
Package contents
- 1 x spotlight, 1 x filter frame, 1 x user manual
| Power supply: |
230 V AC, 50 Hz |
| Power consumption: |
Max. 500 W |
| IP classification: |
IP20 |
| Protection class: |
Protection class I |
| Suitable lamp: |
Max. 230 V/500 W lamp envelope GY9.5 |
| Power connection: |
Fixed power supply cord with safety plug |
| Cable construction: |
3 x 0,75 mm² H05SS-F |
| Cable length: |
Approx. 0,9 m |
| Base: |
GY9.5 |
| Lamp type: |
Halogen lamp |
| Equipment: |
Focus manual |
| Color generation: |
Via color filter frame |
| Cooling: |
Passive convection cooling |
| Control: |
Plug and play |
| Beam angle: |
5° - 45° |
| Beam angle (1/2 peak): |
5 - 20° |
| Beam angle (1/10 peak): |
16 - 45° |
| Housing color: |
Black |
| Attachment system: |
Mounting bracket |
| Material: |
Metal |
| Dimensions: |
Length: 31 cm
Width: 23 cm
Height: 33 cm |
| Weight: |
3,69 kg |
| Noise classification: |
Class 0 (no noise at all) |
| Mounting bracket |
| Diameter mounting holes: |
3 x Ø13mm |
| Material: |
Metal, 3 mm |
| Filter frame |
| Diameter mounting holes: |
2 x Ø10mm |
| Grid size: |
22 x 22 mm |
| Material: |
Metal, 0,5 mm |
| Dimensions: |
Width: 16,8 cm
Height: 16,8 cm |
| Legal specifications |
| Special product: |
Not designed for household room illumination |
| Intended use: |
Show effect lighting |
| Item information |
Value |
| Shipping weight: |
5,30 kg
|
| Item weight: |
4,10 kg
|
| Dimensions
( Length × Width × Height ):
|
26,00 × 41,00 × 285,00 cm |
