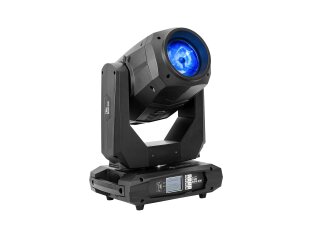

Beam/spot/wash moving head with 371 W discharge lamp, color wheel, gobo wheels, prisms, frost, focus and zoom
- Beam effect; spot effect; wash effect
- Light source: Osram Sirius HRI 371W discharge lamp
- Lamp installed and adjusted ex factory
- Additional frost filter provides a wide, soft and homogeneous light
- Positioning within 540° PAN, 230° TILT
- Auto position correction (feedback)
- Exact 16 bit resolution at zoom, focus
- Exact positioning (16 bit resolution)
- Prism 16-fold; prism 8-fold rotating; prism 16-fold rotating; gobo wheel with static gobos; gobo wheel with rotating gobos; focus motor-driven; zoom motor driven; frost filter; Dimmer
- Color wheel with 13 dichroic filters plus open
rainbow effect with adjustable speed in both directions
- Gobo wheel with rotating gobos, 7 gobos and open
shake effect
- Slot-in gobo system for easy gobo replacement
- Gobos changeable
- Gobo wheel with static gobos, 11 gobos and open
shake effect
- Gobo wheel with static gobos, 5 gobos and open
shake effect
- Integrated show programs
- The device is cooled by cooling fan
- Control via stand-alone; DMX; sound to light via microphone; master/slave function; QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional)
- With a beam angle of 4° - 35°
- Multicolor LCD display,
with battery buffering for easy controlling
- Mains input and output for power linking up to 4 units
- Color animations; patterns
- Preprogrammed in Light Captain
- For application areas such as: Clubs/dancing school; stage; rental
- Application possibility: Standing; suspended
Package contents
- 1 x moving light, 1 x user manual, 1 x power cord, 2 x omega bracket
| Power supply: |
100-240 V AC, 50/60 Hz |
| Power consumption: |
490 W |
| IP classification: |
IP20 |
| Protection class: |
Protection class I |
| Power connection: |
Mains input via P-Con (blue), mounting version power supply cord with safety plug (provided) |
| Power output: |
P-Con (gray), mounting version |
| Fuse: |
5 x 20 mm, T 8 A |
| Lamp type: |
Discharge lamp |
| Max. TILT movement: |
230° exact positioning (16 bit resolution) auto position correction (feedback) |
| Max. PAN movement: |
540° exact positioning (16 bit resolution) auto position correction (feedback) |
| Flash rate: |
1 - 18 Hz |
| Equipment: |
Prism 16-fold; prism 8-fold rotating; prism 16-fold rotating; gobo wheel with static gobos; gobo wheel with rotating gobos; focus motor-driven; zoom motor driven; frost filter; Dimmer |
| Color generation: |
Color wheel with 13 dichroic filters plus open
Rainbow effect with adjustable speed in both directions |
| Gobos: |
Gobo wheel with rotating gobos, 7 gobos and open
Shake effect
Outside diameter 22,5mm
Image diameter 12mm
Slot-in gobo system for easy gobo replacement
Gobos changeable
Gobo wheel with static gobos, 11 gobos and open
Shake effect
Gobo wheel with static gobos, 5 gobos and open
Shake effect |
| DMX channels: |
22; 26 |
| DMX input: |
3-pin XLR (M) mounting version |
| DMX output: |
3-pin XLR (F) mounting version |
| Cooling: |
Cooling fan |
| Control: |
Stand-alone; DMX; sound to light via microphone; master/slave function; QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional) |
| Preprogrammed in: |
Light Captain |
| Beam angle: |
4° - 35° |
| Beam angle (1/2 peak): |
Spot 4 - 35° |
| Beam angle (1/10 peak): |
Spot 4 - 35° |
| Housing color: |
Black |
| Display type: |
Multicolor LCD display battery buffering |
| Use of brands: |
OSRAM bulb included |
| Dimensions: |
Width: 39,5 cm
Depth: 30,5 cm
Height: 63,0 cm |
| Weight: |
22,70 kg |
| Noise classification: |
Class 3 (clearly perceptible sounds) |
| Legal specifications |
| Special product: |
Not designed for household room illumination |
| Intended use: |
Show effect lighting |
| Item information |
Value |
| Shipping weight: |
32,90 kg
|
| Item weight: |
25,30 kg
|
| Dimensions
( Length × Width × Height ):
|
64,00 × 54,00 × 50,00 cm |
