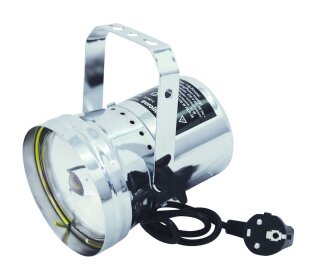

Pinspot with PAR-36 6V/30W lamp
- Narrow beam angle, at a distance of 4 m there is a projected circle of light with a diameter of 30 cm
- Color caps or color foils can be attached in front of the lens
- For illuminating e.g. mirror balls, entrance or counter areas or as basic illumination
- Low power consumption
- Diverse beam angles are possible when using alternative illuminants
- Control via plug and play
- Very high color rendering index (CRI)
- With mounting bracket
- Available in various colors
illuminant
Package contents
- 1 x spotlight, 1 x illuminant, 1 x lamp clamping ring, 1 x user manual
| Power supply: |
230 V AC, 50 Hz |
| Power consumption: |
Max. 30 W |
| IP classification: |
IP20 |
| Protection class: |
Protection class I |
| Suitable lamp: |
PAR-36 G-53 STC |
| Power connection: |
Fixed power supply cord with safety plug |
| Cable construction: |
3 x 0,75 mm² H05VV-F |
| Cable length: |
Approx. 0,9 m |
| Base: |
Wires |
| Control: |
Plug and play |
| Color rendering index (CRI): |
99 Ra |
| Housing color: |
Silver |
| Attachment system: |
Mounting bracket |
| Material: |
Metal |
| Dimensions: |
Length: 16 cm
Width: 15,5 cm
Height: 17 cm |
| Weight: |
1,22 kg |
| Illuminant |
| Voltage (lamps): |
6,4 V |
| Nominal wattage: |
30 W |
| Base: |
G-53 STC |
| Lamp type: |
Halogen lamp; clear lamp |
| Lamp specification: |
Dimmable |
| Beam angle: |
6° |
| Color temperature: |
3000K |
| Construction: |
PAR-36 |
| Mounting bracket |
| Diameter mounting holes: |
3 x Ø10mm; 1 x Ø8mm |
| Material: |
Metal, 2 mm |
| Lamp clamping ring |
| Material: |
Metal |
| Color: |
Silver |
| Legal specifications |
| Special product: |
Not designed for household room illumination |
| Intended use: |
Show effect lighting |
| Item information |
Value |
| Shipping weight: |
1,70 kg
|
| Item weight: |
1,28 kg
|
| Dimensions
( Length × Width × Height ):
|
19,00 × 13,00 × 13,00 cm |
