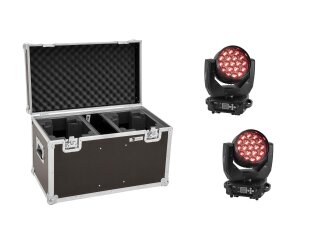

2x washlight with 19 intense 15 W LEDs (4in1) and motorized zoom incl. PRO flightcase
Weight: |
29,44 kg |
EUROLITE LED TMH-X4 Moving Head Wash Zoom |
Power supply: |
100-240 V AC, 50/60 Hz |
Power consumption: |
225 W |
IP classification: |
IP20 |
Power connection: |
Mains input via P-Con (blue), mounting version power supply cord with safety plug |
Power output: |
P-Con (gray), mounting version |
Fuse: |
5 x 20 mm, T 2 A Fuse replaceable |
Lamp type: |
LED lamp |
LED: |
19 x 15 W COB (chip-on-board) 4in1 QCL RGBW (homogenous color mix) |
Max. TILT movement: |
270° Exact positioning (16 bit resolution) Auto position correction (feedback) |
Max. PAN movement: |
540° Exact positioning (16 bit resolution) Auto position correction (feedback) |
Equipment: |
Zoom motor-driven |
DMX channels: |
16; 24 |
DMX input: |
3-pin XLR (M) mounting version |
DMX output: |
3-pin XLR (F) mounting version |
Cooling: |
Temperature-controlled fan at the Head Cooling fan at the Base |
Control: |
Stand-alone; DMX; Sound to light via Microphone; Master/slave function; QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional) |
Preprogrammed in: |
Light´J; LED PC-Control 512; EASY SHOW 1; Light Captain |
Projection: |
Flicker-free |
Beam angle: |
1° - 40° |
Beam angle (1/2 peak): |
1 - 25° |
Beam angle (1/10 peak): |
8 - 40° |
Illuminance in Lux (lx): |
Narrow red (R) 3m: 2779 lx, 6m: 763 lx Narrow green (G) 3m: 7893 lx, 6m: 1841 lx Narrow blue (B) 3m: 1468 lx, 6m: 390 lx Narrow cold white (CW) 3m: 9558 lx, 6m: 2468 lx Narrow all 3m: 19553 lx, 6m: 5001 lx Wide red (R) 3m: 272 lx, 6m: 73 lx Wide green (G) 3m: 583 lx, 6m: 160 lx Wide blue (B) 3m: 117 lx, 6m: 34 lx Wide cold white (CW) 3m: 740 lx, 6m: 211 lx Wide all 3m: 1568 lx, 6m: 439 lx |
Housing color: |
Black |
Display type: |
Multicolor LCD display |
Dimensions: |
Width: 30,5 cm Depth: 20,0 cm Height: 40,0 cm |
Weight: |
8,62 kg |
Noise classification: |
Class 3 (clearly perceptible sounds) |
Photobiological safety: |
Risk Group 0 |
Legal specifications |
Special product: |
Not designed for household room illumination |
Intended use: |
Show effect lighting |
ROADINGER Flightcase 2x LED TMH-X4 |
Maximum load: |
50 kg |
Aluminum profile frames: |
30 mm |
Case handle: |
2 pc/pcs |
Stop hinge: |
2 pc/pcs |
Lock: |
Butterfly lock: 2 pc/pcs |
Use of brands: |
Branded hardware |
Material: |
Birch multiplex, 7 mm; birch multiplex |
Color: |
Black, laminated; dark brown, laminated |
Inside dimensions: |
58 cm x 33,5 cm |
Device compartment: |
24 cm x 23 cm x 33,5 cm |
Middle compartment: |
10 cm x |
Dimensions: |
Width: 72 cm Depth: 46 cm Height: 41 cm |
Weight: |
12,20 kg |
