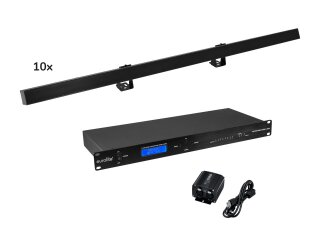

10x DMX-controllable pixel rail with RGB color mixing incl. USB interface and Art-Net interface
EUROLITE USB Interface 2x512 DMX/Artnet incl. 64x DMX512 Control Software
Weight: |
22,68 kg |
EUROLITE LED PR-100/32 Pixel DMX rail bk |
Power supply: |
100-240 V AC, 50/60 Hz |
Power consumption: |
30 W |
IP classification: |
IP20 |
Protection class: |
Protection class I |
Power connection: |
Mains input via P-Con (blue), mounting version power supply cord with safety plug (provided) |
Power output: |
1 x P-Con (gray), mounting version |
Lamp type: |
LED lamp |
LED: |
96 x SMD 5050 3in1 TCL RGB (homogenous color mix) |
Flash rate: |
0 - 20 Hz |
DMX channels: |
3; 5; 8; 48; 96 |
DMX input: |
3-pin XLR (M) mounting version |
DMX output: |
3-pin XLR (F) mounting version |
Cooling: |
Passive convection cooling |
Control: |
Stand-alone; DMX; Sound to light via Microphone |
Preprogrammed in: |
Light Captain |
Beam angle: |
120° |
Beam angle (1/2 peak): |
120° |
Housing color: |
Black |
Attachment system: |
Mounting bracket |
Display type: |
4 digit 7-segment LED display |
Dimensions: |
Length: 99,9 cm Width: 5,95 cm Height: 13,2 cm |
Weight: |
2,01 kg |
Noise classification: |
Class 0 (no noise at all) |
Legal specifications |
Special product: |
Not designed for household room illumination |
Intended use: |
Show effect lighting |
EUROLITE USB Interface 2x512 DMX/Artnet incl. 64x DMX512 Control Software |
Power supply: |
100-240 V AC, 50/60 Hz 5 V DC 1 A |
Power connection: |
Mains input via micro USB (F) mounting version power supply cord for USB A mains connection (provided) |
DMX channels: |
Output 1024 |
DMX output: |
2 x 3-pin XLR (F) mounting version |
Control: |
DMX |
USB port: |
USB 2.0, Typ Mini USB (F) mounting version |
Color: |
Black |
PC connect: |
Via USB |
Dimensions: |
Width: 7 cm Depth: 9 cm Height: 4,5 cm |
Weight: |
180 g |
EUROLITE Art-Net/DMX Node 8 MK2 |
Power supply: |
100-240 V AC, 50/60 Hz |
Power consumption: |
5 W |
Power connection: |
Mains input via P-Con (blue), mounting version power supply cord with safety plug (provided) |
DMX channels: |
Output 4096 |
DMX input: |
2 x 3-pin XLR (M) mounting version |
DMX output: |
8 x 3-pin XLR (F) mounting version |
Network connection: |
Protocol: ArtNet 3 via 2x RJ-45 (F) mounting version |
Control: |
ArtNet |
Connections: |
2 x RJ-45 E-Con (F) mounting version |
PC connect: |
Via RJ-45 (F) mounting version |
Housing design: |
(19") 48.3 cm rack installation |
Dimensions: |
Width: 48,3 cm Depth: 17,5 cm Height: 4,45 cm |
Weight: |
2,40 kg |
