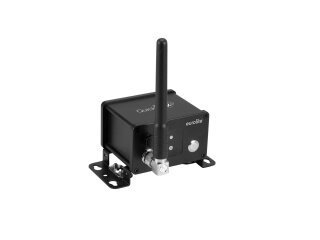

Weather-proof wireless DMX transceiver, IP65
- Auto-switching transceiver
- Adaptive frequency hopping ensures interference-free operation in the 2.4 GHz band
- Multicolored LED indicator
- Lockable power input (IP T-Con)
- Control via QuickDMX; plug and play
- Operating range up to 600m with line-of-sight
- Up to 6 transmitters can be operated in parallel without interference
- With omega bracket
- Suitable for outdoor use IP65
Package contents
- 1 x device, 1 x user manual, 1 x power cord, 1 x declaration of conformity, 1 x omega bracket
| Power supply: |
100-240 V AC, 50/60 Hz |
| IP classification: |
IP65 |
| Power connection: |
Mains input via IP T-Con (M) power supply cord with safety plug (provided) |
| DMX input: |
1 x 3-pin XLR (M) mounting version IP |
| DMX output: |
1 x 3-pin XLR (F) mounting version IP |
| Control: |
QuickDMX; plug and play |
| Range: |
Range up to 600m with line-of-sight |
| Carrier frequency: |
2,4 GHz |
| Parallel mode: |
Max. 6 transmitter |
| Modulation: |
GFSK |
| Attachment system: |
Omega bracket |
| Color: |
Black |
| Dimensions: |
Length: 17,3 cm
Width: 15,6 cm
Height: 9,2 cm |
| Weight: |
1,28 kg |
| Item information |
Value |
| Shipping weight: |
2,00 kg
|
| Item weight: |
1,55 kg
|
| Dimensions
( Length × Width × Height ):
|
135,00 × 30,00 × 20,00 cm |
