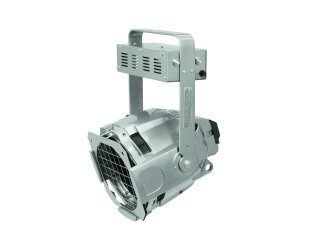

Spot for CDM-T 150 discharge lamp with 4 lenses/beam angles
- Spot with 4 exchangeable lenses (VNSP, NSP, MFL and WFL)
- Light output of a conventional PAR 56 spot with less power consumption
- High-quality die-cast housing for highest stability
- High-quality aluminum reflector
- The device is cooled by passive convection cooling
- Control via plug and play
- For application areas such as: Theater; mobile use; Trade fair and shop fitting
Package contents
- 1 x device, 1 x filter frame, 4 x lens, 1 x user manual
| Power supply: |
230 V AC, 50 Hz |
| Power consumption: |
155 W |
| IP classification: |
IP20 |
| Protection class: |
Protection class I |
| Power connection: |
Fixed power supply cord with safety plug |
| Cable length: |
0,85 m |
| Fuse: |
5 x 20 mm, T 3,15 A fuse replaceable |
| Base: |
G-12 |
| Lamp type: |
Discharge lamp |
| Color generation: |
Via color filter frame (optional) |
| Cooling: |
Passive convection cooling |
| Control: |
Plug and play |
| Beam angle (1/2 peak): |
NSP 20° x 36°
MFL 21° x 36°
WFL 30° x 53°
VNSP 15° x 36° |
| Housing color: |
Silver |
| Dimensions: |
Width: 28 cm
Depth: 22 cm
Height: 40 cm |
| Weight: |
6,65 kg |
| Legal specifications |
| Special product: |
Not designed for household room illumination |
| Intended use: |
Show effect lighting |
| Item information |
Value |
| Shipping weight: |
9,50 kg
|
| Item weight: |
7,30 kg
|
| Dimensions
( Length × Width × Height ):
|
52,00 × 28,00 × 285,00 cm |
