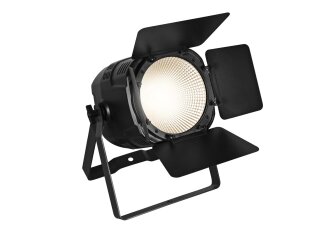

LED theatre spot with warm white (WW) 100 W COB (chip-on-board) LED
- 1 powerful LED 100 W COB (chip-on-board) warm white (WW)
- Dimmer electronic
- Strobe effect
- Integrated show programs
- The device is cooled by cooling fan
- Control via stand-alone; DMX; sound to light via microphone; master/slave function; QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional)
- Flicker-free
- With a beam angle of 40°
- Very high color rendering index (CRI)
- With double bracket
- 4 digit 7-segment LED display
- Very quiet working noise
- For application areas such as: Theater; clubs/dancing school; stage; mobile djs / entertainer
- Mains input and output for power linking up to 8 units
- Application possibility: Standing; suspended; on stand
- Preprogrammed in Light´J; Light Captain; Colorchief
Package contents
- 1 x spotlight, 1 x power cord, 1 x user manual
| Power supply: |
100-240 V AC, 50/60 Hz |
| Power consumption: |
85 W |
| IP classification: |
IP20 |
| Protection class: |
Protection class I |
| Power connection: |
Mains input via P-Con (blue), mounting version power supply cord with safety plug included |
| Power output: |
P-Con (gray), mounting version |
| Fuse: |
T 1 A fuse replaceable |
| Lamp type: |
LED lamp |
| LED type: |
1 x 100 W COB (chip-on-board) warm white (WW) |
| Flash rate: |
0 - 20 Hz |
| DMX channels: |
1; 4 |
| DMX input: |
3-pin XLR (M) mounting version |
| DMX output: |
3-pin XLR (F) mounting version |
| Cooling: |
Cooling fan |
| Control: |
Stand-alone; DMX; sound to light via microphone; master/slave function; QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional) |
| Preprogrammed in: |
Light´J; Light Captain; Colorchief |
| Projection: |
Flicker-free |
| Beam angle: |
40° |
| Beam angle (1/2 peak): |
40° |
| Beam angle (1/10 peak): |
70° |
| Color temperature: |
3100K |
| Color rendering index (CRI): |
96 Ra |
| Illuminance in Lux (lx): |
Warm white (WW) 1m: 5692 lx, 3m: 680 lx, 6m: 180 lx |
| Housing color: |
Black matte |
| Attachment system: |
Double bracket |
| Display type: |
4 digit 7-segment LED display |
| Material: |
Plastic; metal |
| Dimensions: |
Width: 24,3 cm
Depth: 31,1 cm
Height: 32 cm |
| Weight: |
2,75 kg |
| Noise classification: |
Class 1 (very slight noise, suitable for noise-sensitive environments) |
| Photobiological safety: |
Risk Group 0 |
| Power cord |
| Cable construction: |
3 x 1,0 mm² H05VV-F |
| Cable length: |
Approx. 1,2 m |
| Mounting bracket |
| Diameter mounting holes: |
1 x Ø11mm |
| Material: |
Metal, 2,5 mm |
| Barndoor |
| Material: |
Metal, 0,8 mm |
| Legal specifications |
| Special product: |
Not designed for household room illumination |
| Intended use: |
Show effect lighting |
| Item information |
Value |
| Shipping weight: |
4,00 kg
|
| Item weight: |
3,10 kg
|
| Dimensions
( Length × Width × Height ):
|
335,00 × 255,00 × 225,00 cm |
