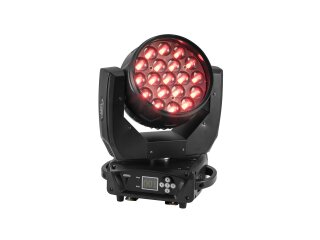

Washlight with 19 x 15 W LEDs, 4in1 QCL RGBW-Farbmischung and motorized zoom
- 19 powerful LEDs 15 W COB (chip-on-board) 4in1 QCL RGBW (homogenous color mix)
3 segments controlled separately
- Positioning within 540° PAN, 270° TILT
- Auto position correction (feedback)
- Exact positioning (16 bit resolution)
- Zoom motor driven
- Integrated show programs
- The device is cooled by temperature-controlled fan at the Head; cooling fan at the base
- Control via stand-alone; DMX; sound to light via microphone; master/slave function; QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional)
- Flicker-free
- With a beam angle of 1° - 40°
- Multicolor LCD display
- Color blend stepless; color change adjustable; Dimmer electronic
- Strobe effect
- Preprogrammed in Light´J; LED PC-Control 512; EASY SHOW 1; Light Captain
- Mains input and output for power linking up to 8 units
- For application areas such as: Clubs/dancing school; wedding/gala/events; stage; mobile djs / entertainer; rental
- Application possibility: Standing; suspended
Package contents
- 1 x moving light, 1 x user manual, 1 x power cord, 2 x omega bracket
| Power supply: |
100-240 V AC, 50/60 Hz |
| Power consumption: |
225 W |
| IP classification: |
IP20 |
| Power connection: |
Mains input via P-Con (blue), mounting version power supply cord with safety plug |
| Power output: |
P-Con (gray), mounting version |
| Fuse: |
5 x 20 mm, T 2 A fuse replaceable |
| Lamp type: |
LED lamp |
| LED type: |
19 x 15 W COB (chip-on-board) 4in1 QCL RGBW (homogenous color mix) |
| Max. TILT movement: |
270° exact positioning (16 bit resolution) auto position correction (feedback) |
| Max. PAN movement: |
540° exact positioning (16 bit resolution) auto position correction (feedback) |
| Equipment: |
Zoom motor driven |
| DMX channels: |
16; 24 |
| DMX input: |
3-pin XLR (M) mounting version |
| DMX output: |
3-pin XLR (F) mounting version |
| Cooling: |
Temperature-controlled fan at the Head
Cooling fan at the base |
| Control: |
Stand-alone; DMX; sound to light via microphone; master/slave function; QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional) |
| Preprogrammed in: |
Light´J; LED PC-Control 512; EASY SHOW 1; Light Captain |
| Projection: |
Flicker-free |
| Beam angle: |
1° - 40° |
| Beam angle (1/2 peak): |
1 - 25° |
| Beam angle (1/10 peak): |
8 - 40° |
| Illuminance in Lux (lx): |
Narrow red (R) 3m: 2779 lx, 6m: 763 lx
Narrow green (G) 3m: 7893 lx, 6m: 1841 lx
Narrow blue (B) 3m: 1468 lx, 6m: 390 lx
Narrow cold white (CW) 3m: 9558 lx, 6m: 2468 lx
Narrow all 3m: 19553 lx, 6m: 5001 lx
Wide red (R) 3m: 272 lx, 6m: 73 lx
Wide green (G) 3m: 583 lx, 6m: 160 lx
Wide blue (B) 3m: 117 lx, 6m: 34 lx
Wide cold white (CW) 3m: 740 lx, 6m: 211 lx
Wide all 3m: 1568 lx, 6m: 439 lx |
| Housing color: |
Black |
| Display type: |
Multicolor LCD display |
| Dimensions: |
Width: 30,5 cm
Depth: 20,0 cm
Height: 40,0 cm |
| Weight: |
8,62 kg |
| Noise classification: |
Class 3 (clearly perceptible sounds) |
| Photobiological safety: |
Risk Group 0 |
| Legal specifications |
| Special product: |
Not designed for household room illumination |
| Intended use: |
Show effect lighting |
| Item information |
Value |
| Shipping weight: |
12,20 kg
|
| Item weight: |
9,40 kg
|
| Dimensions
( Length × Width × Height ):
|
40,00 × 45,00 × 27,00 cm |
