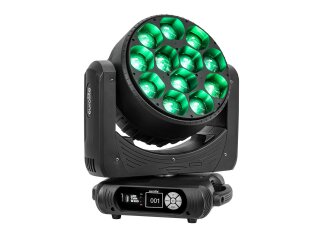

Washlight with 12 bright 40 W RGBW LEDs, zoom, pixel control, pattern effects
- 12 powerful LEDs 40 W 4in1 QCL RGBW (homogenous color mix)
12 LEDs controlled separately
- Positioning within 540° PAN, 215° TILT
- Auto position correction (feedback)
- Exact positioning (16 bit resolution)
- Exact 16 bit resolution at Dimmer
- Zoom motor driven; Dimmer
- Strobe effect
- Integrated show programs
- Direct color selection
- The device is cooled by temperature-controlled fan at the Head; low-noise cooling fan at the base
- Control via stand-alone; DMX; QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional); sound to light via microphone; master/slave function
- Flicker-free
- With a beam angle of 1° - 35°
- Multicolor LCD display
- Color blend stepless; color change adjustable; patterns animated; background color adjustable
- Mains input and output for power linking up to 4 units
- Preprogrammed in Light Captain
- For application areas such as: Clubs/dancing school; wedding/gala/events; stage; theater
- Application possibility: Standing; suspended
Package contents
- 1 x device, 1 x user manual, 1 x power cord, 2 x omega bracket
| Power supply: |
100-240 V AC, 50/60 Hz |
| Power consumption: |
475 W |
| IP classification: |
IP20 |
| Protection class: |
Protection class I |
| Power connection: |
Mains input via P-Con (blue), mounting version power supply cord with safety plug |
| Power output: |
P-Con (gray), mounting version |
| Lamp type: |
LED lamp |
| LED type: |
12 x 40 W 4in1 QCL RGBW (homogenous color mix) |
| Max. TILT movement: |
215° exact positioning (16 bit resolution) auto position correction (feedback) |
| Max. PAN movement: |
540° exact positioning (16 bit resolution) auto position correction (feedback) |
| Equipment: |
Zoom motor driven; Dimmer |
| DMX channels: |
11; 16; 18; 58 |
| DMX input: |
3-pin XLR (M) mounting version
5-pin XLR (M) mounting version |
| DMX output: |
3-pin XLR (F) mounting version
5-pin XLR (F) mounting version |
| Cooling: |
Temperature-controlled fan at the Head
Low-noise cooling fan at the base |
| Control: |
Stand-alone; DMX; QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional); sound to light via microphone; master/slave function |
| Preprogrammed in: |
Light Captain |
| Projection: |
Flicker-free |
| Beam angle: |
1° - 35° |
| Beam angle (1/2 peak): |
1 - 18° |
| Beam angle (1/10 peak): |
6 - 35° |
| Illuminance in Lux (lx): |
Narrow red (R) 1m: 10753 lx, 3m: 4966 lx, 6m: 1572 lx
Narrow green (G) 1m: 30231 lx, 3m: 12941 lx, 6m: 4189 lx
Narrow blue (B) 1m: 3586 lx, 3m: 2214 lx, 6m: 830 lx
Narrow cold white (CW) 1m: 29150 lx, 3m: 12657 lx, 6m: 4024 lx
Narrow all 1m: 66539 lx, 3m: 31156 lx, 6m: 10125 lx
Wide red (R) 1m: 2592 lx, 3m: 363 lx, 6m: 99 lx
Wide green (G) 1m: 7263 lx, 3m: 966 lx, 6m: 265 lx
Wide blue (B) 1m: 1368 lx, 3m: 188 lx, 6m: 51 lx
Wide cold white (CW) 1m: 6610 lx, 3m: 887 lx, 6m: 242 lx
Wide all 1m: 16995 lx, 3m: 2285 lx, 6m: 622 lx |
| Housing color: |
Black |
| Display type: |
Multicolor LCD display |
| Dimensions: |
Width: 39,0 cm
Depth: 27,0 cm
Height: 47,0 cm |
| Weight: |
14,65 kg |
| Noise classification: |
Class 2 (slight noise) |
| Legal specifications |
| Special product: |
Not designed for household room illumination |
| Intended use: |
Show effect lighting |
| Item information |
Value |
| Shipping weight: |
20,80 kg
|
| Item weight: |
16,00 kg
|
| Dimensions
( Length × Width × Height ):
|
47,00 × 47,00 × 36,00 cm |
