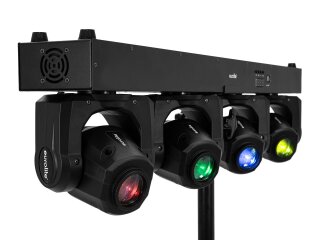

LED lighting system with 4 individually controllable 30 W moving heads, gobo- and color wheel
- 4 powerful LEDs 30 W COB (chip-on-board)
- Control via stand-alone; DMX; sound to light via microphone; master/slave function; QuickDMX via USB (optional); CRMX by LumenRadio via USB (optional); W-DMX by wireless solution (optional)
- Gobo wheel with static gobos; focus manual; color wheel
- Gobo wheel with static gobos, 7 gobos and open
shake effect
- Color wheel with 7 dichroic filters plus open
half colors selectable, Rainbow effect with adjustable speed
- Strobe effect; beam effect
- Positioning within 540° PAN, 180° TILT
- Exact positioning (16 bit resolution)
- Dimmer electronic
- Flicker-free
- With a beam angle of 13°
- Crossbar with integrated DMX control unit and stand sleeve
- With omega bracket
- 4 digit 7-segment LED display
- Rubber feet
- The device is cooled by temperature-controlled fan
- Mains input and output for power linking up to 8 units
- Preprogrammed in Colorchief; Light´J; Light Captain
- For application areas such as: Clubs/dancing school; wedding/gala/events; party room; mobile djs / entertainer
- Application possibility: Standing; suspended; on stand
Package contents
- 1 x moving light, 1 x user manual, 1 x power cord, 2 x omega bracket, 2 x safety eyelet
| Power supply: |
100-240 V AC, 50/60 Hz |
| Power consumption: |
100 W |
| IP classification: |
IP20 |
| Protection class: |
Protection class I |
| Power connection: |
Mains input via P-Con (blue), mounting version power supply cord with safety plug (provided) |
| Power output: |
P-Con (gray), mounting version |
| Fuse: |
5 x 20 mm, T 2 A fuse replaceable |
| Lamp type: |
LED lamp |
| LED type: |
4 x 30 W COB (chip-on-board) |
| Max. TILT movement: |
180° positioning; exact positioning (16 bit resolution) |
| Max. PAN movement: |
540° positioning; exact positioning (16 bit resolution) |
| Flash rate: |
2 - 14 Hz |
| Equipment: |
Gobo wheel with static gobos; focus manual; color wheel |
| Color generation: |
Color wheel with 7 dichroic filters plus open
Half colors selectable, Rainbow effect with adjustable speed |
| Gobos: |
Gobo wheel with static gobos, 7 gobos and open
Shake effect |
| DMX channels: |
3; 5; 9; 11; 17; 21; 30; 38 |
| DMX input: |
3-pin XLR (M) mounting version |
| DMX output: |
3-pin XLR (F) mounting version |
| Cooling: |
Temperature-controlled fan |
| Control: |
Stand-alone; DMX; sound to light via microphone; master/slave function; QuickDMX via USB (optional); CRMX by LumenRadio via USB (optional); W-DMX by wireless solution (optional) |
| Preprogrammed in: |
Colorchief; Light´J; Light Captain |
| Projection: |
Flicker-free |
| PWM frequency: |
11000 Hz |
| Beam angle: |
13° |
| Beam angle (1/2 peak): |
13° |
| Color temperature: |
7300K |
| Illuminance in Lux (lx): |
Cold white (CW) 1m: 8899 lx, 3m: 856 lx, 6m: 205 lx |
| Housing color: |
Black |
| Attachment system: |
2x omega bracket |
| Display type: |
4 digit 7-segment LED display |
| Transport aid: |
Rubber feet |
| Dimensions: |
Width: 100,0 cm
Depth: 17,5 cm
Height: 28,0 cm |
| Weight: |
13,00 kg |
| Noise classification: |
Class 3 (clearly perceptible sounds) |
| Legal specifications |
| Special product: |
Not designed for household room illumination |
| Intended use: |
Show effect lighting |
| Item information |
Value |
| Shipping weight: |
19,50 kg
|
| Item weight: |
15,00 kg
|
| Dimensions
( Length × Width × Height ):
|
255,00 × 108,00 × 34,00 cm |
