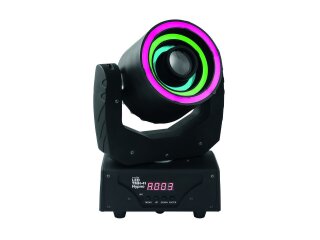

Narrow angled spotlight with 3 hypno rings, 30 W LED, gobo and color wheel
- Compact lightweight
- 76 powerful LEDs SMD 5050 3in1 TCL RGB (homogenous color mix)
segments controlled separately
- 1 powerful LED 30 W COB (chip-on-board) color wheel
- Positioning within 540° PAN, 210° TILT
- PAN angle switchable between 540° and 630°
- Auto position correction (feedback)
- Exact positioning (16 bit resolution)
- Gobo wheel with static gobos; focus manual
- Gobo effect; beam effect
- Gobo wheel with static gobos, 9 gobos and open
shake effect
- Integrated show programs
- The device is cooled by passive convection cooling
- Control via stand-alone; DMX; sound to light via microphone
- Flicker-free
- With a beam angle of 4,7°
- 4 digit 7-segment LED display
- Dimmer electronic; color blend stepless
- Color wheel with 9 dichroic filters plus open
- Preprogrammed in Light´J; LED PC-Control 512; Light Captain
- DMX feed-through for up to 32 further DMX devices
- DMX fail mode (hold; sound; auto; zero values)
- For application areas such as: Clubs/dancing school; wedding/gala/events; party room; mobile djs / entertainer
- Application possibility: Standing; suspended
Package contents
- 1 x moving light, 1 x user manual, 1 x power cord, 1 x omega bracket, 1 x XLR cable, 2 x screw, 2 x washer
| Power supply: |
100-240 V AC, 50/60 Hz |
| Power consumption: |
70 W |
| IP classification: |
IP20 |
| Power connection: |
Mains input via IEC connector (M) mounting version power supply cord with safety plug (provided) |
| Lamp type: |
LED lamp |
| LED type: |
76 x SMD 5050 3in1 TCL RGB (homogenous color mix)
1 x 30 W COB (chip-on-board) color wheel |
| Max. TILT movement: |
210° exact positioning (16 bit resolution) auto position correction (feedback) |
| Max. PAN movement: |
540°, 630° exact positioning (16 bit resolution) auto position correction (feedback) |
| Flash rate: |
0 - 25 Hz |
| Equipment: |
Gobo wheel with static gobos; focus manual |
| Color generation: |
Color wheel with 9 dichroic filters plus open |
| Gobos: |
Gobo wheel with static gobos, 9 gobos and open
Shake effect |
| DMX channels: |
12; 23 |
| DMX input: |
1 x 3-pin XLR (M) mounting version |
| DMX output: |
1 x 3-pin XLR (F) mounting version |
| Cooling: |
Passive convection cooling |
| Control: |
Stand-alone; DMX; sound to light via microphone |
| Preprogrammed in: |
Light´J; LED PC-Control 512; Light Captain |
| Projection: |
Flicker-free |
| DMX features: |
DMX feed-through for up to 32 further DMX devices |
| DMX fail mode: |
Hold; sound; auto; zero values |
| Beam angle: |
4,7° |
| Beam angle (1/2 peak): |
4,7° |
| Housing color: |
Black |
| Display type: |
4 digit 7-segment LED display |
| Dimensions: |
Width: 24,5 cm
Depth: 16,5 cm
Height: 35 cm |
| Weight: |
5,68 kg |
| Noise classification: |
Class 3 (clearly perceptible sounds) |
| Legal specifications |
| Special product: |
Not designed for household room illumination |
| Intended use: |
Show effect lighting |
| Item information |
Value |
| Shipping weight: |
8,60 kg
|
| Item weight: |
6,60 kg
|
| Dimensions
( Length × Width × Height ):
|
34,00 × 44,00 × 27,00 cm |
