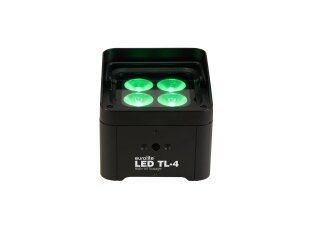

Variable truss light and uplight with bright 4 x 8 W RGB+UV LED
- Compact and bright
- Perfect for ALUTRUSS 4 point system QUADLOCK
- Folding foot adjustable in 5 steps for flexible placement
- 4 powerful LEDs 8 W high-power 4in1 QCL RGB/UV (homogenous color mix)
- Color change adjustable; Dimmer electronic; color blend stepless
- Strobe effect
- Integrated show programs
- Direct color selection for 18 preset colors
- The device is cooled by passive convection cooling
- Control via DMX; sound to light via microphone; IR remote control; QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional); stand-alone
- With a beam angle of 13°
- Monochrome 4 digit 7-segment LED display
- Silent operation
- Preprogrammed in LED PC-Control 512; LED EASY OPERATOR DELUXE; Light Captain; EASY SHOW 2; EASY SHOW 3; Colorchief
- Rubber feet
- Mains input and output for power linking up to 8 units
- For application areas such as: Clubs/dancing school; wedding/gala/events; stage; mobile djs / entertainer
- Application possibility: Standing; suspended
Package contents
- 1 x spotlight, 1 x power cord, 1 x remote control, 1 x user manual
| Power supply: |
100-240 V AC, 50/60 Hz |
| Power consumption: |
15 W |
| IP classification: |
IP20 |
| Protection class: |
Protection class I |
| Power connection: |
Mains input via IEC connector (M) mounting version power supply cord with safety plug (provided) |
| LED type: |
4 x 8 W high-power 4in1 QCL RGB/UV (homogenous color mix) |
| Flash rate: |
0 - 20 Hz |
| DMX channels: |
3; 4; 8 |
| DMX input: |
1 x USB, type A
1 x 3-pin XLR (M) mounting version |
| DMX output: |
1 x 3-pin XLR (F) mounting version |
| Cooling: |
Passive convection cooling |
| Control: |
DMX; sound to light via microphone; IR remote control; QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional); stand-alone |
| Preprogrammed in: |
LED PC-Control 512; LED EASY OPERATOR DELUXE; Light Captain; EASY SHOW 2; EASY SHOW 3; Colorchief |
| Beam angle: |
13° |
| Beam angle (1/2 peak): |
13° |
| Beam angle (1/10 peak): |
30° |
| Housing color: |
Black |
| Attachment system: |
M10 thread |
| Display type: |
Monochrome 4 digit 7-segment LED display |
| Transport aid: |
Rubber feet |
| Dimensions: |
Length: 15,5 cm
Width: 14,5 cm
Height: 13,0 cm |
| Weight: |
1,56 kg |
| Noise classification: |
Class 0 (no noise at all) |
| Photobiological safety: |
Risk Group 0 |
| Power cord |
| Cable construction: |
3 x 0,75 mm² H05VV-F |
| Cable length: |
Approx. 1,1 m |
| Color: |
Black |
| Legal specifications |
| Special product: |
Not designed for household room illumination |
| Intended use: |
Show effect lighting |
| Item information |
Value |
| Shipping weight: |
2,20 kg
|
| Item weight: |
1,70 kg
|
| Dimensions
( Length × Width × Height ):
|
16,00 × 18,00 × 18,00 cm |
