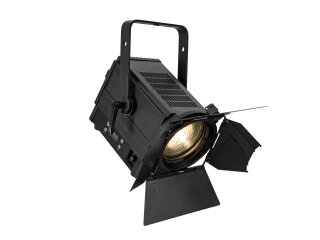

Fresnel spotlight (fresnel lens), warm white 100 W LED, CRI >90, quiet, DMX
- 1 powerful LED 100 W COB (chip-on-board) warm white (WW)
- Strobe effect
- The device is cooled by low-noise cooling fan
- Control via stand-alone; DMX; QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional)
- Flicker-free
- With a beam angle of 8° - 55°
- Very high color rendering index (CRI)
- With mounting bracket
- LCD display
- Dimmer electronic; dimmer curves with adjustable response; pulse-width modulation variable; Dimmer speed (step response) adjustable
- Preprogrammed in Light Captain
- Rubber feet
- Mains input and output for power linking up to 8 units
- For application areas such as: Trade fair and shop fitting; installation; stage; theater
- Very quiet working noise
- Application possibility: Suspended; on stand
Package contents
- 1 x spotlight, 1 x power cord, 1 x barndoor, 1 x filter frame, 1 x user manual
| Power supply: |
100-240 V AC, 50/60 Hz |
| Power consumption: |
95 W |
| IP classification: |
IP20 |
| Protection class: |
Protection class I |
| Power connection: |
Mains input via P-Con (blue), mounting version included |
| Power output: |
P-Con (gray), mounting version |
| Fuse: |
5 x 20 mm, T 2 A fuse replaceable |
| Lamp type: |
LED lamp |
| LED type: |
1 x 100 W COB (chip-on-board) warm white (WW) |
| Flash rate: |
20 Hz |
| DMX channels: |
1; 3 |
| DMX input: |
3-pin XLR (M) mounting version
5-pin XLR (M) mounting version |
| DMX output: |
3-pin XLR (F) mounting version
5-pin XLR (F) mounting version |
| Cooling: |
Low-noise cooling fan |
| Control: |
Stand-alone; DMX; QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional) |
| Preprogrammed in: |
Light Captain |
| Projection: |
Flicker-free |
| Beam angle: |
8° - 55° |
| Beam angle (1/2 peak): |
8 - 40° |
| Beam angle (1/10 peak): |
16 - 55° |
| Color temperature: |
3000K |
| Color rendering index (CRI): |
96 Ra |
| Luminous flux: |
5384 lm |
| Housing color: |
Black |
| Attachment system: |
Mounting bracket |
| Display type: |
LCD display |
| Transport aid: |
Rubber feet |
| Material: |
Aluminum casting; metal |
| Dimensions: |
Length: 35,0 cm
Width: 31,5 cm
Height: 39,5 cm |
| Weight: |
7,15 kg |
| Noise classification: |
Class 1 (very slight noise, suitable for noise-sensitive environments) |
| Energy efficiency class (A - G): |
G |
| EPREL-Nr: |
1243837 |
| Power cord |
| Cable construction: |
3 x 1,5 mm² H05VV-F |
| Cable length: |
Approx. 1,8 m |
| Mounting bracket |
| Diameter mounting holes: |
5 x Ø13mm |
| Material: |
Aluminum casting, 6 mm |
| Barndoor |
| Material: |
Aluminum, 1 mm |
| Ring diameter: |
Outside: 172 mm
Inside: 150 mm |
| Dimensions: |
Width: 42,2 cm
Height: 42,5 cm |
| Filter frame |
| Material: |
Aluminum, 1 mm |
| Dimensions: |
Width: 18,5 cm
Height: 18,5 cm
Diameter: Ø 15,2 cm |
| Item information |
Value |
| Shipping weight: |
12,10 kg
|
| Item weight: |
9,30 kg
|
| Dimensions
( Length × Width × Height ):
|
38,00 × 49,00 × 40,00 cm |
