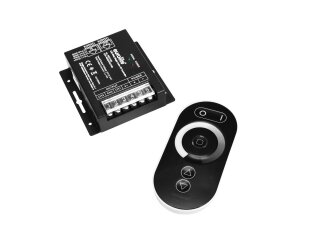

3-channel LED controller with wireless remote control for 3 single-colored LED strips 12-24V
- For controlling up to 3 single-colored LED strips 12-24 V
- Brightness selection via touch-sensitive color wheel
- RJ45 jacks for serial connection
- 3 integrated show programs
- Control via wireless remote control
- Operating range up to 20m
- Program speed adjustable; Dimmer electronic
Package contents
| Power supply: |
12/24V DC |
| Power consumption: |
Max. 360 W 12 V DC
Max. 720 W 24 V DC
120 W 12 V DC per channal
240 W 24 V DC per channal |
| Output current: |
Max. 3 x 10 A per channal |
| Power connection: |
Via screw terminal |
| Control: |
Wireless remote control |
| Range: |
Range up to 20m |
| Carrier frequency: |
433,920 MHz |
| Connections: |
Screw terminal |
| Dimensions: |
Length: 9 cm
Width: 9 cm
Height: 2,4 cm |
| Weight: |
0,30 kg |
| Remote control |
| Battery: |
3 x 1.5 V AAA Micro LR03 alkaline manganese built-in |
| Dimensions: |
Height: 2,2 cm |
| Item information |
Value |
| Shipping weight: |
0,40 kg
|
| Item weight: |
0,33 kg
|
| Dimensions
( Length × Width × Height ):
|
5,00 × 11,00 × 11,00 cm |
