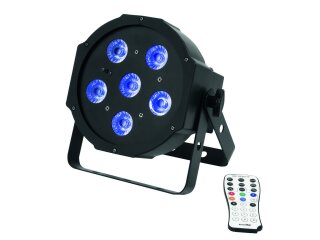

Flat spotlight with 5 x 3 W 3in1 LED (RGB) and one 3 W UV LED, incl. IR remote control
- Slim design for space-saving applications
- DMX and power terminals intelligently designed for easy wiring
- 6 powerful LEDs 3 W high-power 4in1 QCL RGB/UV (homogenous color mix)
- Color blend stepless; color change adjustable; color fade adjustable; Dimmer electronic
- UV effect; strobe effect
- Integrated show programs
- The device is cooled by cooling fan
- Control via stand-alone; DMX; IR remote control; sound to light via microphone; master/slave function
- With a beam angle of 11°
- With double bracket
- 4 digit 7-segment LED display
- Preprogrammed in Light´J; LED PC-Control 512; LED EASY OPERATOR DELUXE; Light Captain; Colorchief
- Mains input and output for power linking up to 8 units
- Application possibility: Standing; suspended; on stand
- For application areas such as: Clubs/dancing school; wedding/gala/events; party room; mobile djs / entertainer
Package contents
- 1 x spotlight, 1 x power cord, 1 x remote control, 1 x battery, 1 x user manual
| Power supply: |
100-240 V AC, 50/60 Hz |
| Power consumption: |
20 W |
| IP classification: |
IP20 |
| Power connection: |
Mains input via IEC connector (M) mounting version power supply cord with safety plug (provided) |
| Power output: |
1 x IEC connector (F) mounting version |
| Lamp type: |
LED lamp |
| LED type: |
6 x 3 W high-power 4in1 QCL RGB/UV (homogenous color mix) |
| DMX channels: |
4; 8 |
| DMX input: |
1 x 3-pin XLR (M) mounting version |
| DMX output: |
1 x 3-pin XLR (F) mounting version |
| Cooling: |
1 x cooling fan |
| Control: |
Stand-alone; DMX; IR remote control; sound to light via microphone; master/slave function |
| Preprogrammed in: |
Light´J; LED PC-Control 512; LED EASY OPERATOR DELUXE; Light Captain; Colorchief |
| Beam angle: |
11° |
| Beam angle (1/2 peak): |
11° |
| Beam angle (1/10 peak): |
28° |
| Housing color: |
Black |
| Attachment system: |
Double bracket |
| Display type: |
4 digit 7-segment LED display |
| Material: |
Plastic; metal; ABS Acrylonitrile butadiene styrene |
| Dimensions: |
Width: 23 cm
Depth: 11 cm
Height: 23 cm |
| Weight: |
1,41 kg |
| Noise classification: |
Class 2 (slight noise) |
| Photobiological safety: |
Risk Group 0 |
| Power cord |
| Cable construction: |
3 x 0,75 mm² H05VV-F |
| Cable length: |
Approx. 1,1 m |
| Mounting bracket |
| Diameter mounting holes: |
5 x Ø11mm |
| Material: |
Metal, 2 mm |
| Color: |
Black |
| Remote control |
| Battery: |
1 x button cell 3.0 V CR2025 lithium manganese built-in |
| Legal specifications |
| Special product: |
Not designed for household room illumination |
| Intended use: |
Show effect lighting |
| Item information |
Value |
| Shipping weight: |
2,20 kg
|
| Item weight: |
1,67 kg
|
| Dimensions
( Length × Width × Height ):
|
13,00 × 25,00 × 21,00 cm |
