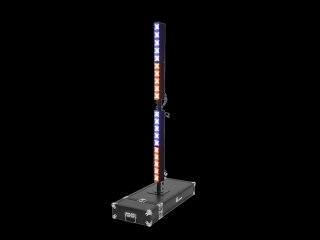

Multifunctional vertical light effect with mounting option on the supplied case
- Every LED bar can be manually rotated centrally at the joint
- Connection between the two LED bars can be extended spatially at will via P-Con and 3-pin XLR cables
- 80 powerful LEDs 0,3 W SMD 5050 warm white (WW)
4 segments controlled separately
- 20 powerful LEDs 15 W high-power 4in1 QCL RGBW (homogenous color mix)
LEDs controlled separately
- Dimmer electronic; color blend stepless; color change adjustable; colors preset
- Strobe effect
- 96 integrated show programs
- The device is cooled by passive convection cooling
- Control via DMX; sound to light via microphone; QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional); IR remote control; stand-alone
- With a beam angle of 8°
- TV spigot
- Silent operation
- Preprogrammed in LED PC-Control 512; Light Captain; Light´J
- With mounting bracket
- For application areas such as: Wedding/gala/events; mobile use; stage; mobile djs / entertainer
- Application possibility: Standing; suspended; on stand
Package contents
- 2 x segment, 1 x remote control, 1 x case, 1 x user manual, 2 x power cord, 4 x angle, 1 x stand, 4 x washer, 4 x frost filter, 8 x knurled screw, 1 x holder, 2 x mounting bracket, 3 x XLR cable
| Power supply: |
100-240 V AC, 50/60 Hz |
| Power consumption: |
250 W |
| IP classification: |
IP20 |
| Lamp type: |
LED lamp |
| LED type: |
80 x 0,3 W SMD 5050 warm white (WW)
20 x 15 W high-power 4in1 QCL RGBW (homogenous color mix) |
| DMX channels: |
12; 20; 27; 84; 5 |
| DMX input: |
1 x 3-pin XLR (M) mounting version |
| DMX output: |
1 x 3-pin XLR (F) mounting version |
| Cooling: |
Passive convection cooling |
| Control: |
DMX; sound to light via microphone; QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional); IR remote control; stand-alone |
| Preprogrammed in: |
LED PC-Control 512; Light Captain; Light´J |
| Beam angle: |
8° |
| Beam angle (1/2 peak): |
8° |
| Housing color: |
Black |
| Attachment system: |
TV spigot Ø 28mm
Mounting bracket |
| Weight: |
12,00 kg |
| Noise classification: |
Class 0 (no noise at all) |
| Device |
| Dimensions: |
Length: 110 cm
Width: 44 cm
Height: 200 cm |
| Segment |
| Dimensions: |
Length: 92 cm
Width: 10,1 cm
Height: 7 cm |
| Remote control |
| Battery: |
Button cell 3.0 V CR2025 lithium manganese built-in |
| Case |
| Dimensions: |
Length: 110 cm
Width: 44 cm
Height: 18 cm |
| Item information |
Value |
| Shipping weight: |
36,80 kg
|
| Item weight: |
28,30 kg
|
| Dimensions
( Length × Width × Height ):
|
165,00 × 110,00 × 42,00 cm |
