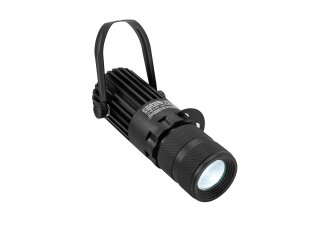

Narrow beam pinspot with 12 W cold white (CW) LED
- For illuminating e.g. mirror balls, entrance or counter areas or as basic illumination
- For application areas such as: Trade fair and shop fitting; installation; restaurants, bars and hotels; video and photography
- 1 powerful LED 12 W COB (chip-on-board) cold white (CW)
- Focus manual; zoom manual
- Spot effect
- The device is cooled by passive convection cooling
- Control via plug and play
- Silent operation
- Application possibility: Suspended; on stand; wall mounting
- Very high color rendering index (CRI)
Package contents
- 1 x spotlight, 1 x user manual
| Power supply: |
100-240 V AC, 50/60 Hz |
| Power consumption: |
12 W |
| IP classification: |
IP20 |
| Protection class: |
Protection class I |
| Power connection: |
Fixed power supply cord with safety plug |
| Lamp type: |
LED lamp |
| LED type: |
1 x 12 W COB (chip-on-board) cold white (CW) |
| Equipment: |
Focus manual; zoom manual |
| Cooling: |
Passive convection cooling |
| Control: |
Plug and play |
| Beam angle: |
12° |
| Beam angle (1/2 peak): |
Spot 12° monochrome
Spot 11° monochrome
Spot 10° monochrome
Spot 7° monochrome |
| Beam angle (1/10 peak): |
Spot 16°
Spot 14°
Spot 12°
Spot 9° |
| Color temperature: |
6000K |
| Color rendering index (CRI): |
90 Ra |
| Illuminance in Lux (lx): |
Cold white (CW) 1m: 5138 lx, 3m: 541 lx, 6m: 145 lx |
| Luminous flux: |
1200 lm rated light flux at 90° |
| Housing color: |
Black matte |
| Material: |
Aluminum casting; metal; plastic |
| Dimensions: |
Length: 19 cm
Width: 8,5 cm
Height: 13,5 cm
Diameter: Ø 6 cm |
| Weight: |
0,44 kg |
| Noise classification: |
Class 0 (no noise at all) |
| Energy efficiency class (A - G): |
E |
| EPREL-Nr: |
2035437 |
| Power cord |
| Cable construction: |
3 x 0,75 mm² H05VV-F |
| Cable length: |
Approx. 1 m |
| Mounting bracket |
| Diameter mounting holes: |
1 x Ø10mm |
| Item information |
Value |
| Shipping weight: |
0,60 kg
|
| Item weight: |
0,45 kg
|
| Dimensions
( Length × Width × Height ):
|
8,00 × 19,00 × 185,00 cm |
