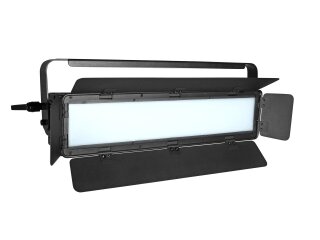

DMX-controlled surface light with 432 dual white LEDs, QuickDMX port and barn doors
- 432 powerful LEDs SMD 2835 CW/WW
- 4 barn doors to avoid blinding the audience and for protection during transport
- Energy-saving, durable and environmentally friendly
- Variable color temperature 2800 K - 6500 K
- Pulse-width modulation variable
- Strobe effect
- Integrated show programs
- The device is cooled by passive convection cooling
- Control via DMX; quick select potentiometer for brightness and color temperature; stand-alone; sound to light via microphone; master/slave function; QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional)
- Flicker-free
- With a beam angle of 120°
- Very high color rendering index (CRI)
- With mounting bracket
- LCD display
- For application areas such as: Video and photography; stage; Trade fair and shop fitting; installation
- Preprogrammed in Light Captain
- Mains input and output for power linking up to 8 units
- Rugged carrying handle
- Silent operation
- Application possibility: Suspended; on stand
Package contents
- 1 x spotlight, 1 x user manual, 1 x power cord
| Power supply: |
100-240 V AC, 50/60 Hz |
| Power consumption: |
85 W |
| IP classification: |
IP20 |
| Protection class: |
Protection class I |
| Fuse: |
T 3 A fuse replaceable |
| Lamp type: |
LED lamp |
| LED type: |
432 x SMD 2835 CW/WW |
| DMX channels: |
2; 4; 6 |
| DMX input: |
3-pin XLR (M) mounting version |
| DMX output: |
3-pin XLR (F) mounting version |
| Cooling: |
Passive convection cooling |
| Control: |
DMX; quick select potentiometer for brightness and color temperature; stand-alone; sound to light via microphone; master/slave function; QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional) |
| Preprogrammed in: |
Light Captain |
| Projection: |
Flicker-free |
| Beam angle: |
120° |
| Beam angle (1/2 peak): |
120° |
| Color temperature: |
2800K - 6500K adjustable |
| Color rendering index (CRI): |
91 Ra |
| Illuminance in Lux (lx): |
Cold white (CW) 1m: 919 lx, 3m: 124 lx, 6m: 38 lx
Warm white (WW) 1m: 801 lx, 3m: 109 lx, 6m: 33 lx
All 1m: 1681 lx, 3m: 228 lx, 6m: 69 lx |
| Housing color: |
Black |
| Attachment system: |
Mounting bracket |
| Display type: |
LCD display |
| Carrying handle: |
1 pc/pcs |
| Dimensions: |
Width: 60,3 cm
Depth: 17,9 cm
Height: 20,8 cm |
| Weight: |
4,60 kg |
| Noise classification: |
Class 0 (no noise at all) |
| Photobiological safety: |
Risk Group 0 |
| Item information |
Value |
| Shipping weight: |
6,70 kg
|
| Item weight: |
5,15 kg
|
| Dimensions
( Length × Width × Height ):
|
24,00 × 62,00 × 17,00 cm |
