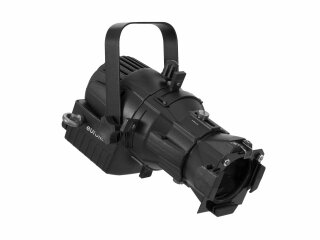

Handy stage spotlight with 20 W COB LED, CRI >95
- 4 shutter blades
- 1 powerful LED 20 W COB (chip-on-board) warm white (WW)
- Dimmer electronic
- The device is cooled by passive convection cooling
- Flicker-free
- With a beam angle of 19°
- Very high color rendering index (CRI)
- With mounting bracket
- For application areas such as: Trade fair and shop fitting; installation; restaurants, bars and hotels; video and photography
- Silent operation
- Application possibility: Suspended; on stand
screw
Package contents
- 1 x spotlight, 1 x gobo holder, 1 x filter frame, 2 x screw, 2 x washer, 1 x user manual
| Power supply: |
100-240 V AC, 50/60 Hz |
| Power consumption: |
20 W |
| IP classification: |
IP20 |
| Protection class: |
Protection class I |
| Power connection: |
Mains input via 3-pin screw plug connector (M) mounting version power supply cord with safety plug (provided) |
| Fuse: |
5 x 20 mm, T 0,5 A fuse replaceable |
| Lamp type: |
LED lamp |
| LED type: |
1 x 20 W COB (chip-on-board) warm white (WW) |
| Cooling: |
Passive convection cooling |
| Projection: |
Flicker-free |
| Beam angle: |
19° |
| Beam angle (1/2 peak): |
19° |
| Color temperature: |
3000K |
| Color rendering index (CRI): |
97 Ra |
| Illuminance in Lux (lx): |
Warm white (WW) 1m: 5177 lx, 3m: 611 lx, 6m: 154 lx |
| Housing color: |
Black matte |
| Attachment system: |
Mounting bracket |
| Material: |
Aluminum casting; metal; plastic |
| Dimensions: |
Length: 22,2 cm
Width: 15,8 cm
Height: 20,3 cm |
| Weight: |
1,23 kg |
| Noise classification: |
Class 0 (no noise at all) |
| Gobo holder |
| Gobos: |
Outside diameter 42mm
Image diameter 18mm |
| Material: |
Aluminum, 0,3 mm |
| Dimensions: |
Width: 4,4 cm
Height: 10,1 cm
Diameter: Ø 3,4 cm |
| Power cord |
| Cable construction: |
3 x 0,75 mm² H05VV-F |
| Cable length: |
Approx. 1,4 m |
| Filter frame |
| Material: |
Aluminum, 0,3 mm |
| Dimensions: |
Width: 6,9 cm
Height: 6,9 cm
Diameter: Ø 5,6 cm |
| Mounting bracket |
| Diameter mounting holes: |
1 x Ø11mm; 2 x Ø7mm |
| Material: |
Aluminum casting, 2 mm |
| Screw |
| Thread: |
M5 thread x 11 mm |
| Washer |
| Material: |
Plastic |
| Color: |
Pink |
| Dimensions: |
Height: 0,1 cm
Diameter: Ø 1,2 cm |
| Legal specifications |
| Special product: |
Not designed for household room illumination |
| Intended use: |
Show effect lighting |
| Item information |
Value |
| Shipping weight: |
1,80 kg
|
| Item weight: |
1,40 kg
|
| Dimensions
( Length × Width × Height ):
|
150.000,00 × 250.000,00 × 130.000,00 cm |
