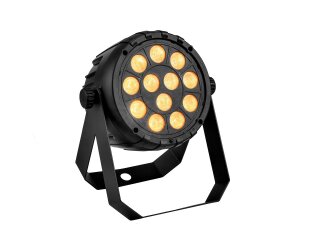

Compact spotlight with 12 x 5 W 4in1 QCL RGB/WW LED and DMX control
- 12 powerful LEDs 5 W COB (chip-on-board) 4in1 QCL RGB/WW (homogenous color mix)
- Color blend stepless; color change programs; Dimmer electronic
- Strobe effect
- 10 integrated show programs
- Direct color selection for 20 preset colors
- The device is cooled by passive convection cooling
- Control via stand-alone; sound to light via microphone; master/slave function; DMX; IR remote control (optional); QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional)
- Preprogrammed in LED PC-Control 512; EASY SHOW 2; EASY SHOW 3; Light´J; Light Captain; Colorchief
- Flicker-free
- With a beam angle of 12°
- Good color rendering index (CRI)
- With double bracket
- 4 digit 7-segment LED display
- For application areas such as: Party room; mobile djs / entertainer; small rental
- Silent operation
- Application possibility: Standing; suspended; on stand
Package contents
- 1 x light effect, 2 x mounting bracket, 2 x screw, 2 x washer, 1 x user manual
| Power supply: |
100-240 V AC, 50/60 Hz |
| Power consumption: |
17 W |
| IP classification: |
IP20 |
| Protection class: |
Protection class II |
| Power connection: |
Fixed power supply cord with Euro plug |
| Cable construction: |
2 x 0,75 mm² H03VVH2-F |
| Cable length: |
Approx. 1 m |
| Device fuse: |
T 1 A fuse fix in power supply |
| Lamp type: |
LED lamp |
| LED type: |
12 x 5 W COB (chip-on-board) 4in1 QCL RGB/WW (homogenous color mix) |
| Flash rate: |
0,5 - 16 Hz |
| DMX channels: |
4; 6; 8 |
| DMX input: |
3-pin XLR (M) mounting version |
| DMX output: |
3-pin XLR (F) mounting version |
| Cooling: |
Passive convection cooling |
| Control: |
Stand-alone; sound to light via microphone; master/slave function; DMX; IR remote control (optional); QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional) |
| Preprogrammed in: |
LED PC-Control 512; EASY SHOW 2; EASY SHOW 3; Light´J; Light Captain; Colorchief |
| Projection: |
Flicker-free |
| PWM frequency: |
2000 Hz |
| Beam angle: |
12° |
| Beam angle (1/2 peak): |
12° |
| Beam angle (1/10 peak): |
30° |
| Color temperature: |
2700K |
| Color rendering index (CRI): |
83 Ra |
| Housing color: |
Black |
| Attachment system: |
Double bracket |
| Display type: |
4 digit 7-segment LED display |
| Material: |
Plastic |
| Dimensions: |
Length: 9 cm
Width: 15,5 cm
Height: 19 cm
Diameter: Ø 12,5 cm |
| Weight: |
0,60 kg |
| Noise classification: |
Class 0 (no noise at all) |
| Mounting bracket |
| Diameter mounting holes: |
1 x Ø13mm; 2 x Ø6mm |
| Material: |
Metal, 1,5 mm |
| Legal specifications |
| Special product: |
Not designed for household room illumination |
| Intended use: |
Show effect lighting |
| Item information |
Value |
| Shipping weight: |
0,90 kg
|
| Item weight: |
0,68 kg
|
| Dimensions
( Length × Width × Height ):
|
115,00 × 15,00 × 13,00 cm |
