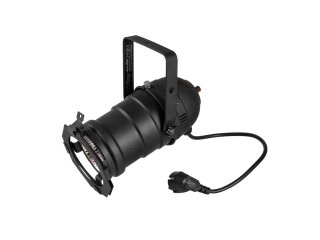

LED spotlight with three adjustable color temperatures and high color rendering index
- 1 powerful LED 16 W COB (chip-on-board) 2in1 BCL CW/WW
- The device is cooled by passive convection cooling
- Control via quick select potentiometer for brightness and color temperature
- Flicker-free
- With a beam angle of 20°
- Very high color rendering index (CRI)
- With mounting bracket
- Available in various colors
- Silent operation
- For application areas such as: Trade fair and shop fitting; video and photography; installation; restaurants, bars and hotels
- Dimmable
- Dimmer electronic
- Direct color temperature selection for 3 preset values
- Application possibility: Suspended; on stand
Package contents
- 1 x spotlight, 1 x filter frame, 1 x user manual
| Power supply: |
100-240 V AC, 50/60 Hz |
| Power consumption: |
Max. 18,5 W |
| IP classification: |
IP20 |
| Protection class: |
Protection class I |
| Power connection: |
Fixed power supply cord with safety plug |
| Cable construction: |
3 x 0,75 mm² H05VV-F |
| Cable length: |
Approx. 0,4 m |
| Lamp type: |
LED lamp |
| Lamp specification: |
Dimmable |
| LED type: |
1 x 16 W COB (chip-on-board) 2in1 BCL CW/WW |
| Cooling: |
Passive convection cooling |
| Control: |
Quick select potentiometer for brightness and color temperature |
| Projection: |
Flicker-free |
| Beam angle: |
20° |
| Beam angle (1/2 peak): |
20° |
| Beam angle (1/10 peak): |
35° |
| Color temperature: |
3000K; 4000K; 5000K |
| Color rendering index (CRI): |
90 Ra |
| Illuminance in Lux (lx): |
3000 K 1m: 4483 lx, 3m: 582 lx, 6m: 156 lx
4000 K 1m: 4908 lx, 3m: 634 lx, 6m: 166 lx
5000 K 1m: 5049 lx, 3m: 646 lx, 6m: 170 lx |
| Lamp life: |
15000 h |
| Luminous flux: |
1300 lm |
| Housing color: |
Black |
| Attachment system: |
Mounting bracket |
| Material: |
Aluminum |
| Slot for spot length: |
12,8 cm x 12,8 cm |
| Dimensions: |
Length: 24 cm
Width: 14,7 cm
Height: 20 cm |
| Weight: |
0,80 kg |
| Noise classification: |
Class 0 (no noise at all) |
| Energy efficiency class (A - G): |
G |
| EPREL-Nr: |
1269735 |
| Mounting bracket |
| Diameter mounting holes: |
2 x Ø10mm |
| Material: |
Aluminum casting, 3 mm |
| Dimensions: |
Width: 13 cm
Depth: 2 cm
Height: 13 cm |
| Filter frame |
| Shape: |
Octagonal |
| Material: |
Aluminum, 0,8 mm |
| Dimensions: |
Width: 12,6 cm
Height: 12,6 cm
Diameter: Ø 9,4 cm |
| Item information |
Value |
| Shipping weight: |
1,10 kg
|
| Item weight: |
0,88 kg
|
| Dimensions
( Length × Width × Height ):
|
27,00 × 145,00 × 14,00 cm |
