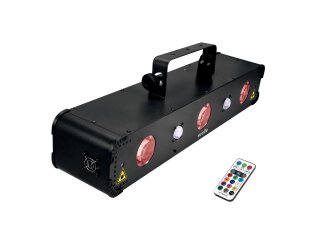

Lighting effect with RGBAW LED matrix, UV, RG laser (class 2M) and stroboscope
- Matrix effect with a total of 192 LEDs generates countless moving colourful dots in the room
- 4 laser diodes project thousands of red and green laser beams
- Matrix, blacklight, laser and strobe can be controlled individually
- Strobe effect; multi beam effect; flower effect; UV effect; laser
- 14 integrated show programs
- The device is cooled by cooling fan
- Control via stand-alone; DMX; sound to light via microphone; master/slave function; IR remote control
- Preprogrammed in LED PC-Control 512; Light Captain
- With mounting bracket
- Monochrome 4 digit 7-segment LED display
- Mains input and output for power linking up to 8 units
- For application areas such as: Clubs/dancing school; party room; mobile djs / entertainer
- Application possibility: Suspended
laser
- Laser class 2M
does not require additional protective measures or appointment of a laser safety officer
spotlight
- 2 powerful LEDs 3 W high-power ultra violet (UV)
light effect
- 192 powerful LEDs 5 mm R/G/B/W/A
strobes
Package contents
- 1 x device, 1 x user manual, 1 x power cord, 1 x remote control, 1 x battery
Power supply: |
100-240 V AC, 50/60 Hz |
Power consumption: |
35 W |
IP classification: |
IP20 |
Protection class: |
Protection class I |
Power connection: |
Mains input via IEC connector (M) mounting version power supply cord with safety plug (provided) |
Power output: |
1 x IEC connector (F) mounting version |
Fuse: |
5 x 20 mm, T 1 A fuse replaceable |
Lamp type: |
LED lamp |
DMX channels: |
2; 5; 10 |
DMX input: |
1 x 3-pin XLR (M) mounting version |
DMX output: |
1 x 3-pin XLR (F) mounting version |
Cooling: |
Cooling fan |
Control: |
Stand-alone; DMX; sound to light via microphone; master/slave function; IR remote control |
Preprogrammed in: |
LED PC-Control 512; Light Captain |
Housing color: |
Black |
Attachment system: |
Mounting bracket |
Display type: |
Monochrome 4 digit 7-segment LED display |
Dimensions: |
Length: 76 cm Depth: 18 cm Height: 24,5 cm |
Weight: |
5,25 kg |
Noise classification: |
Class 3 (clearly perceptible sounds) |
Remote control |
Battery: |
1 x button cell 3.0 V CR2025 lithium manganese built-in |
Laser |
Laser class: |
2M |
Laser color: |
R/G |
Laser module: |
Red (R) 100 mW 650nm Green (G) 30 mW 532nm |
Spotlight |
LED type: |
2 x 3 W high-power ultra violet (UV) |
Light effect |
LED type: |
192 x 5 mm R/G/B/W/A |
Strobes |
LED type: |
36 |
Item information |
Value |
Shipping weight: |
8,10 kg
|
Item weight: |
6,20 kg
|
Dimensions
( Length × Width × Height ):
|
24,00 × 83,00 × 23,00 cm |
