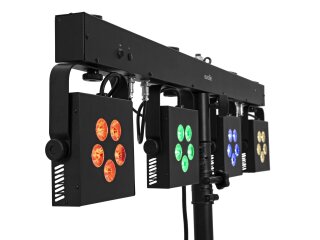

Bar with 4 powerful RGB/WW spots, QuickDMX support, IR remote control and carrying bag
- 5 powerful LEDs 7 W high-power 4in1 QCL RGB/WW (homogenous color mix)
spots controlled separately
- Crossbar with integrated DMX control unit and TV spigot for tripod installation
- With a beam angle of 16°
- 20 integrated show programs
- Color blend stepless; Dimmer electronic; program selection
- Mounting points and power outlets for additional fixtures
- Control via DMX; stand-alone; sound to light via microphone; IR remote control; wireless footswitch (optional); QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional)
- For application areas such as: Mobile use; stage; mobile djs / entertainer; small rental; rental
- Preprogrammed in EASY SHOW 1; LED EASY OPERATOR DELUXE; Light Captain; EASY SHOW 2; Light´J; EASY SHOW 3; Colorchief
- Mains input and output for power linking up to 8 units
- Very quiet working noise
- Application possibility: Suspended; on stand
Package contents
- 1 x light effect, 1 x user manual, 1 x power cord, 1 x remote control, 1 x battery, 2 x omega bracket, 1 x declaration of conformity, 4 x knurled screw, 1 x bag
| Power supply: |
100-240 V AC, 50/60 Hz |
| Power consumption: |
125 W |
| IP classification: |
IP20 |
| Power connection: |
Mains input via P-Con (blue), mounting version power supply cord with safety plug (provided) |
| Cable length: |
3 m |
| Power output: |
2 x IEC connector (F) mounting version
1 x P-Con (gray), mounting version |
| Device fuse: |
5 x 20 mm, T 2 A fuse replaceable |
| Power output fuse per channel: |
5 x 20 mm, T 5 A fuse replaceable |
| Battery: |
1 x button cell 3.0 V CR2025 lithium manganese built-in |
| Lamp type: |
LED lamp |
| LED type: |
5 x 7 W high-power 4in1 QCL RGB/WW (homogenous color mix) |
| DMX channels: |
3; 4; 6; 8; 16; 20; 18 |
| DMX input: |
3-pin XLR (M) mounting version |
| DMX output: |
3-pin XLR (F) mounting version |
| Cooling: |
Passive convection cooling |
| Control: |
DMX; stand-alone; sound to light via microphone; IR remote control; wireless footswitch (optional); QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional) |
| Preprogrammed in: |
EASY SHOW 1; LED EASY OPERATOR DELUXE; Light Captain; EASY SHOW 2; Light´J; EASY SHOW 3; Colorchief |
| Beam angle: |
16° |
| Beam angle (1/2 peak): |
16° |
| Beam angle (1/10 peak): |
32° |
| Housing color: |
Black |
| Attachment system: |
TV spigot Ø 28mm
Omega bracket |
| Dimensions: |
Width: 108 cm
Depth: 6 cm
Height: 28 cm |
| Weight: |
9,80 kg |
| Noise classification: |
Class 1 (very slight noise, suitable for noise-sensitive environments) |
| Legal specifications |
| Special product: |
Not designed for household room illumination |
| Intended use: |
Show effect lighting |
| Item information |
Value |
| Shipping weight: |
14,00 kg
|
| Item weight: |
10,80 kg
|
| Dimensions
( Length × Width × Height ):
|
18,00 × 113,00 × 38,00 cm |
