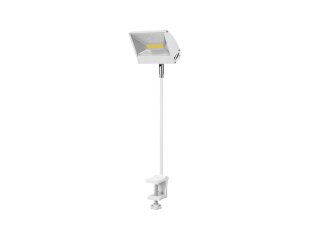

30 W LED floodlight with extension arm and screw terminal for fixation
- Head tiltable 90°
- Unique design
- Easy mounting via screw clamp
- For tabletops with up to 40 mm strength
- 1 powerful LED 30 W COB (chip-on-board) neutral white (NW)
- The device is cooled by passive convection cooling
- Control via plug and play
- With a beam angle of 59°
- Good color rendering index (CRI)
- Various versions available
- Silent operation
- For application areas such as: Advertisement/Shop window; Trade fair and shop fitting
- Application possibility: Suspended; wall mounting
Package contents
- 1 x spotlight, 1 x knurled screw, 1 x plate, 1 x user manual
| Power supply: |
100-240 V AC, 50/60 Hz |
| Power consumption: |
30 W |
| IP classification: |
IP20 |
| Protection class: |
Protection class I |
| Power connection: |
Fixed power supply cord with safety plug |
| Cable construction: |
3 x 0,75 mm² H05VV-F |
| Cable length: |
Approx. 1,2 m |
| Lamp type: |
LED lamp |
| LED type: |
1 x 30 W COB (chip-on-board) neutral white (NW) |
| Cooling: |
Passive convection cooling |
| Control: |
Plug and play |
| Beam angle: |
59° |
| Beam angle (1/2 peak): |
59° |
| Beam angle (1/10 peak): |
106° |
| Color temperature: |
4100K |
| Color rendering index (CRI): |
83 Ra |
| Illuminance in Lux (lx): |
1m: 1339 lx, 3m: 144 lx, 6m: 43 lx |
| Luminous flux: |
1796 lm |
| Housing color: |
White |
| Dimensions: |
Length: 62 cm
Width: 13,5 cm
Depth: 8,4 cm |
| Weight: |
0,86 kg |
| Noise classification: |
Class 0 (no noise at all) |
| Photobiological safety: |
Risk Group 0 |
| Energy efficiency class (A - G): |
G |
| EPREL-Nr: |
1023937 |
| Knurled screw |
| Thread: |
X 60 mm |
| Plate |
| Material: |
Metal, 1,5 mm |
| Color: |
Silver |
| Dimensions: |
Diameter: Ø 2 cm |
| Item information |
Value |
| Shipping weight: |
1,20 kg
|
| Item weight: |
0,96 kg
|
| Dimensions
( Length × Width × Height ):
|
5,00 × 60,00 × 145,00 cm |
