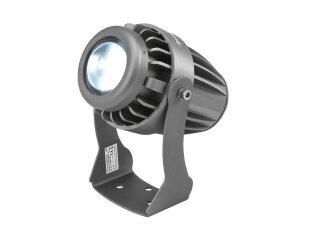

Weather-proof pinspot (IP65) with strong 10 W LED in cold white (CW)
- Compact aluminum housing
- 1 powerful LED 10 W high-power cold white (CW)
- Beam effect
- The device is cooled by passive convection cooling
- Control via plug and play
- With a beam angle of 4°
- With mounting bracket
- Suitable for outdoor use IP65
- Silent operation
- For application areas such as: Installation; restaurants, bars and hotels; architecture
- Application possibility: Suspended
Package contents
- 1 x device, 1 x user manual
| Power supply: |
100-240 V AC, 50/60 Hz |
| Power consumption: |
10 W |
| IP classification: |
IP65 |
| Protection class: |
Protection class I |
| Power connection: |
Fixed power supply cord with safety plug |
| Cable length: |
Approx. 0,9 m |
| Lamp type: |
LED lamp |
| LED type: |
1 x 10 W high-power cold white (CW) |
| Cooling: |
Passive convection cooling |
| Control: |
Plug and play |
| Beam angle: |
4° |
| Beam angle (1/2 peak): |
4° |
| Beam angle (1/10 peak): |
6° |
| Color temperature: |
6400K |
| Illuminance in Lux (lx): |
1m: 39687 lx, 3m: 4446 lx, 6m: 1255 lx |
| Luminous flux: |
887 lm |
| Housing color: |
Grey |
| Attachment system: |
Mounting bracket |
| Material: |
Aluminum casting |
| Dimensions: |
Width: 10,5 cm
Depth: 15 cm
Height: 14,7 cm |
| Weight: |
0,75 kg |
| Noise classification: |
Class 0 (no noise at all) |
| Energy efficiency class (A - G): |
F |
| EPREL-Nr: |
1064813 |
| Mounting bracket |
| Diameter mounting holes: |
3 x Ø6mm |
| Material: |
Aluminum, 2 mm |
| Item information |
Value |
| Shipping weight: |
1,00 kg
|
| Item weight: |
0,80 kg
|
| Dimensions
( Length × Width × Height ):
|
11,00 × 17,00 × 125,00 cm |
