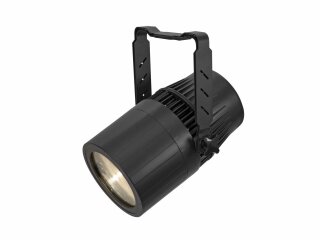

Weather-proof PAR spot, IP65, with warm white 100 W COB LED and motorized zoom
- Light performance comparable to a traditional 1000 W halogen spot light
- Homogeneous light distribution
- 1 powerful LED 100 W COB (chip-on-board) warm white (WW)
- Zoom motor driven
- Dimmer curves with adjustable response; pulse-width modulation variable; Gamma correction adjustable; Dimmer speed (step response) adjustable
- Strobe effect
- The device is cooled by temperature-controlled fan
- Control via DMX; stand-alone; master/slave function
- Flicker-free
- With a beam angle of 7° - 53°
- Very high color rendering index (CRI)
- With double bracket
- 4 digit 7-segment LED display
- Suitable for outdoor use IP65
- For application areas such as: Theater; Trade fair and shop fitting; installation; stage
- Mains input and output for power linking up to 8 units
- Preprogrammed in Light Captain
- Application possibility: Suspended; on stand
Package contents
- 1 x device, 1 x power cord, 1 x XLR cable, 2 x mounting bracket, 2 x knurled screw, 4 x washer, 1 x user manual
| Power supply: |
100-240 V AC, 50/60 Hz |
| Power consumption: |
120 W |
| IP classification: |
IP65 |
| Protection class: |
Protection class I |
| Power connection: |
Mains input via IP T-Con (M) mounting version power supply cord with safety plug |
| Power output: |
IP T-Con (F) mounting version |
| Fuse: |
T 6,3 A fuse fix in power supply |
| Lamp type: |
LED lamp |
| LED type: |
1 x 100 W COB (chip-on-board) warm white (WW) |
| Flash rate: |
0 - 20 Hz |
| Equipment: |
Zoom motor driven |
| DMX channels: |
1; 2; 3; 4 |
| DMX input: |
3-pin XLR (M) mounting version IP |
| DMX output: |
3-pin XLR (F) mounting version IP |
| Cooling: |
Temperature-controlled fan |
| Control: |
DMX; stand-alone; master/slave function |
| Preprogrammed in: |
Light Captain |
| Projection: |
Flicker-free |
| Beam angle: |
7° - 53° |
| Beam angle (1/2 peak): |
7 - 36° |
| Beam angle (1/10 peak): |
9 - 53° |
| Color temperature: |
3000K |
| Color rendering index (CRI): |
90 Ra |
| Housing color: |
Black matte |
| Attachment system: |
Double bracket |
| Display type: |
4 digit 7-segment LED display |
| Material: |
Aluminum casting |
| Dimensions: |
Length: 36 cm
Width: 29 cm
Height: 35 cm |
| Weight: |
8,40 kg |
| Noise classification: |
Class 2 (slight noise) |
| Power cord |
| Cable construction: |
3 x 1,5 mm² H07RN-F |
| Cable length: |
Approx. 1,5 m |
| XLR cable |
| Cable length: |
Approx. 1 m |
| Connector type: |
3-pin XLR (M); 3-pin XLR (F) |
| Mounting bracket |
| Diameter mounting holes: |
1 x Ø10mm |
| Material: |
Metal, 2,5 mm |
| Item information |
Value |
| Shipping weight: |
11,90 kg
|
| Item weight: |
9,15 kg
|
| Dimensions
( Length × Width × Height ):
|
295,00 × 48,00 × 30,00 cm |
