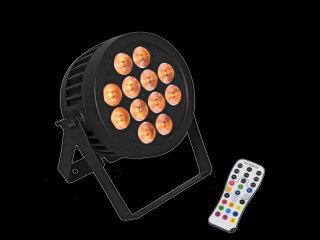

Weather-proof (IP65) spotlight with 12 x 8 W LED and 4in1 QCL RGBW color mixing
- 12 powerful LEDs 8 W 4in1 QCL RGBW (homogenous color mix)
- Color blend stepless; color change adjustable; color fade adjustable; Dimmer electronic
- Strobe effect
- Direct color selection for 25 preset colors
- The device is cooled by passive convection cooling
- Control via DMX; IR remote control; stand-alone
- Flicker-free
- With a beam angle of 15°
- With double bracket
- LCD display
- Suitable for outdoor use IP65
- Silent operation
- Preprogrammed in LED PC-Control 512; EASY SHOW 1; LED EASY OPERATOR 4x4; LED EASY OPERATOR 4x6; LED EASY OPERATOR DELUXE; Light Captain; EASY SHOW 2; EASY SHOW 3; Colorchief
- Mains input and output for power linking up to 8 units
- With pressure compensation membrane
- For application areas such as: Installation; stage; rental; architecture
- Application possibility: Standing; suspended; on stand
Package contents
- 1 x spotlight, 1 x power cord, 1 x remote control, 1 x battery, 1 x user manual
| Power supply: |
100-240 V AC, 50/60 Hz |
| Power consumption: |
75 W |
| IP classification: |
IP65 |
| Protection class: |
Protection class I |
| Power connection: |
Mains input via IP T-Con (M) mounting version power supply cord with safety plug |
| Power output: |
IP T-Con (F) mounting version |
| Fuse: |
T 5 A fuse fix on board |
| Lamp type: |
LED lamp |
| LED type: |
12 x 8 W 4in1 QCL RGBW (homogenous color mix) |
| Flash rate: |
0,5 - 24 Hz |
| DMX channels: |
3; 4; 5; 6; 10 |
| DMX input: |
3-pin XLR (M) mounting version IP |
| DMX output: |
3-pin XLR (F) mounting version IP |
| Cooling: |
Passive convection cooling |
| Control: |
DMX; IR remote control; stand-alone |
| Preprogrammed in: |
LED PC-Control 512; EASY SHOW 1; LED EASY OPERATOR 4x4; LED EASY OPERATOR 4x6; LED EASY OPERATOR DELUXE; Light Captain; EASY SHOW 2; EASY SHOW 3; Colorchief |
| Projection: |
Flicker-free |
| PWM frequency: |
5900 Hz |
| Beam angle: |
15° |
| Beam angle (1/2 peak): |
15° |
| Beam angle (1/10 peak): |
30° |
| Housing color: |
Black |
| Attachment system: |
Double bracket |
| Display type: |
LCD display |
| Material: |
Aluminum casting |
| Dimensions: |
Width: 28,5 cm
Depth: 15,3 cm
Height: 31,35 cm |
| Weight: |
5,20 kg |
| Noise classification: |
Class 0 (no noise at all); Class 0 (no noise at all) |
| Photobiological safety: |
Risk Group 0 |
| Mounting bracket |
| Diameter mounting holes: |
3 x Ø11mm |
| Material: |
Metal, 2,5 mm |
| Power cord |
| Cable construction: |
3 x 1,0 mm² H05RN-F |
| Cable length: |
Approx. 1,2 m |
| Remote control |
| Battery: |
1 x button cell 3.0 V CR2025 lithium manganese |
| Legal specifications |
| Special product: |
Not designed for household room illumination |
| Intended use: |
Show effect lighting |
| Item information |
Value |
| Shipping weight: |
7,50 kg
|
| Item weight: |
5,75 kg
|
| Dimensions
( Length × Width × Height ):
|
20,00 × 35,00 × 32,00 cm |
