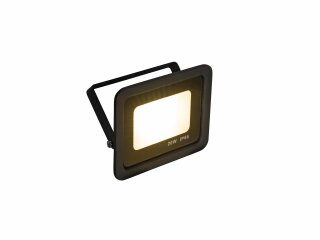

Flat outdoor floodlight (IP66) with white SMD LEDs
- 30 powerful LEDs SMD 2835 warm white (WW)
- The device is cooled by passive convection cooling
- Control via plug and play
- Good color rendering index (CRI)
- With mounting bracket
- Suitable for outdoor use IP66
- Various versions available
- Silent operation
- For application areas such as: Installation; restaurants, bars and hotels; architecture
- Application possibility: Suspended
Package contents
- 1 x device, 1 x user manual
| Power supply: |
230 V AC, 50 Hz |
| Power consumption: |
22 W |
| IP classification: |
IP66 |
| Protection class: |
Protection class I |
| Power connection: |
Fixed power supply cord with safety plug |
| Cable construction: |
3 x 1,0 mm² H05RN-F |
| Cable length: |
Approx. 1 m |
| Lamp type: |
LED lamp |
| LED type: |
30 x SMD 2835 warm white (WW) |
| Cooling: |
Passive convection cooling |
| Control: |
Plug and play |
| Beam angle (1/2 peak): |
70° |
| Beam angle (1/10 peak): |
120° |
| Color temperature: |
3000K |
| Color rendering index (CRI): |
81 Ra |
| Luminous flux: |
1706 lm |
| Housing color: |
Black matte |
| Attachment system: |
Mounting bracket |
| Material: |
Aluminum casting |
| Dimensions: |
Width: 13 cm
Depth: 2,3 cm
Height: 10 cm |
| Weight: |
0,36 kg |
| Noise classification: |
Class 0 (no noise at all) |
| Energy efficiency class (A - G): |
F |
| EPREL-Nr: |
963719 |
| Mounting bracket |
| Diameter mounting holes: |
2 x Ø6mm; 1 x Ø8mm |
| Material: |
Metal, 1,5 mm |
| Item information |
Value |
| Shipping weight: |
0,50 kg
|
| Item weight: |
0,40 kg
|
| Dimensions
( Length × Width × Height ):
|
115,00 × 16,00 × 75,00 cm |
There are no reviews yet.
