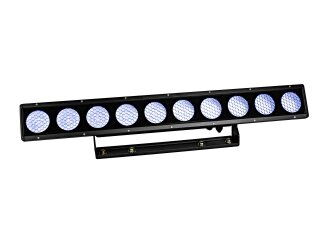

Weather-proof blinder bar with pixel control and colored atmospheric light in the reflector
- 10 powerful LEDs 24 W COB (chip-on-board) CW/WW (homogenous color mix)
LEDs controlled separately
- 200 powerful LEDs 0,2 W SMD 3528 3in1 TCL RGB (homogenous color mix)
10 segments controlled separately
- Variable color temperature 1800 K - 6000 K
- Color blend stepless; color change adjustable; color fade adjustable; Dimmer electronic; dimmer curves with adjustable response; white balance adjustable
- Strobe effect
- 10 integrated show programs
- The device is cooled by low-noise cooling fan
- Control via stand-alone; master/slave function; DMX; Art-Net; RDM
- Preprogrammed in Light Captain; LED PC-Control 512
- Flicker-free
- With a beam angle of 28°
- With mounting bracket; with omega bracket
- OLED display
- Mains input and output for power linking up to 4 units
- Suitable for outdoor use IP65
- With pressure compensation membrane
- For application areas such as: Clubs/dancing school; stage; rental
- Very quiet working noise
- Application possibility: Suspended
Package contents
- 1 x bar, 1 x user manual, 1 x power cord, 2 x omega bracket, 1 x XLR cable
| Power supply: |
100-240 V AC, 50/60 Hz |
| Power consumption: |
315 W |
| IP classification: |
IP65 |
| Protection class: |
Protection class I |
| Power connection: |
Mains input via IP T-Con (M) mounting version power supply cord with safety plug (provided) |
| Power output: |
IP T-Con (F) mounting version |
| Lamp type: |
LED lamp |
| LED type: |
10 x 24 W COB (chip-on-board) CW/WW (homogenous color mix)
200 x 0,2 W SMD 3528 3in1 TCL RGB (homogenous color mix) |
| DMX channels: |
10; 14; 20; 50; 59 |
| DMX input: |
3-pin XLR (M) mounting version IP |
| DMX output: |
3-pin XLR (F) mounting version IP |
| Cooling: |
Low-noise cooling fan |
| Control: |
Stand-alone; master/slave function; DMX; Art-Net; RDM |
| Preprogrammed in: |
Light Captain; LED PC-Control 512 |
| Projection: |
Flicker-free |
| Beam angle: |
28° |
| Beam angle (1/2 peak): |
28° |
| Beam angle (1/10 peak): |
63 |
| Color temperature: |
1800K - 6000K adjustable |
| Housing color: |
Black |
| Attachment system: |
Mounting bracket
2x omega bracket |
| Display type: |
OLED display |
| Connections: |
2 x RJ-45 E-Con (F) mounting version |
| Dimensions: |
Length: 101,0 cm
Depth: 12,5 cm
Height: 24 cm |
| Weight: |
10,50 kg |
| Noise classification: |
Class 1 (very slight noise, suitable for noise-sensitive environments) |
| Legal specifications |
| Special product: |
Not designed for household room illumination |
| Intended use: |
Show effect lighting |
| Item information |
Value |
| Shipping weight: |
15,40 kg
|
| Item weight: |
11,85 kg
|
| Dimensions
( Length × Width × Height ):
|
25,00 × 110,00 × 28,00 cm |
