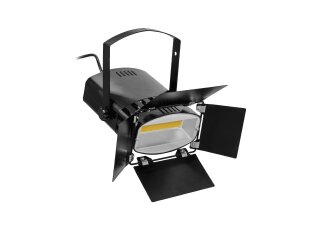

High power 50 W spotlight with neutral white light
- 1 powerful LED 70 W COB (chip-on-board) neutral white (NW)
- The device is cooled by passive convection cooling
- Control via plug and play
- With a beam angle of 50°
- Good color rendering index (CRI)
- With mounting bracket
- For application areas such as: Trade fair and shop fitting; installation; restaurants, bars and hotels
- Silent operation
- Application possibility: Suspended; on stand; wall mounting
Package contents
- 1 x spotlight, 1 x barndoor, 1 x user manual
| Power supply: |
100-240 V AC, 50/60 Hz |
| Power consumption: |
50 W |
| IP classification: |
IP20 |
| Protection class: |
Protection class I |
| Power connection: |
Fixed power supply cord with safety plug |
| Cable construction: |
3 x 0,75 mm² H05VV-F |
| Cable length: |
Approx. 0,8 m |
| Fuse: |
T 1 A fuse fix on board |
| Lamp type: |
LED lamp |
| LED type: |
1 x 70 W COB (chip-on-board) neutral white (NW) |
| Cooling: |
Passive convection cooling |
| Control: |
Plug and play |
| Beam angle: |
50° |
| Beam angle (1/2 peak): |
50° |
| Beam angle (1/10 peak): |
90° |
| Color temperature: |
4100K |
| Color rendering index (CRI): |
82 Ra |
| Illuminance in Lux (lx): |
1m: 2551 lx, 3m: 348 lx, 6m: 104 lx |
| Luminous flux: |
3462 lm |
| Housing color: |
Black |
| Attachment system: |
Mounting bracket |
| Material: |
Aluminum casting; metal |
| Color: |
Black |
| Dimensions: |
Length: 21,0 cm
Width: 20,5 cm
Height: 22,0 cm |
| Weight: |
2,00 kg |
| Noise classification: |
Class 0 (no noise at all) |
| Energy efficiency class (A - G): |
G |
| EPREL-Nr: |
1509814 |
| Barndoor |
| Diameter mounting holes: |
2 x Ø4mm |
| Material: |
Metal, 1 mm |
| Color: |
Black, matte |
| Dimensions: |
Width: 20 cm
Depth: 2,3 cm
Height: 14,3 cm |
| Mounting bracket |
| Diameter mounting holes: |
1 x Ø10mm; 1 x Ø8mm |
| Material: |
Metal, 2 mm |
| Angle |
| Diameter mounting holes: |
6 x Ø4mm; 1 x Ø10mm |
| Material: |
Metal, 2,5 mm |
| Color: |
Silvergrey |
| Dimensions: |
Length: 10,5 cm
Width: 2,8 cm |
| Item information |
Value |
| Shipping weight: |
2,90 kg
|
| Item weight: |
2,25 kg
|
| Dimensions
( Length × Width × Height ):
|
140.000,00 × 300.000,00 × 230.000,00 cm |
