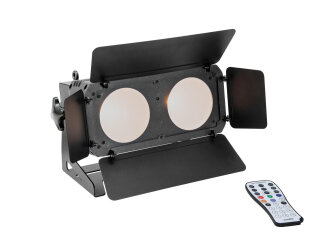

LED light effect bar with WW/CW COB LEDs, incl. IR remote control
- 2 powerful LEDs 50 W COB (chip-on-board) 2in1 BCL CW/WW (homogenous color mix)
- Variable color temperature 2400 K - 5000 K
- Dimmer electronic
- Strobe effect
- Integrated show programs
- Direct color selection for 27 preset colors
- The device is cooled by cooling fan
- Control via stand-alone; DMX; IR remote control; quick select potentiometer for brightness and color temperature; master/slave function; sound to light via microphone; QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional)
- Flicker-free
- With a beam angle of 40°
- Very high color rendering index (CRI)
- With mounting bracket
- 4 digit 7-segment LED display
- For application areas such as: Trade fair construction; theater; video and photography
- Preprogrammed in Light Captain; Colorchief
- Mains input and output for power linking up to 8 units
Package contents
- 1 x spotlight, 1 x power cord, 1 x remote control, 1 x battery, 1 x user manual
| Power supply: |
100-240 V AC, 50/60 Hz |
| Power consumption: |
80 W |
| IP classification: |
IP20 |
| Protection class: |
Protection class I |
| Lamp type: |
LED lamp |
| LED type: |
2 x 50 W COB (chip-on-board) 2in1 BCL CW/WW (homogenous color mix) |
| Flash rate: |
0 - 20 Hz |
| DMX channels: |
2; 3; 4; 6 |
| DMX input: |
3-pin XLR (M) mounting version |
| DMX output: |
3-pin XLR (F) mounting version |
| Cooling: |
1 x cooling fan |
| Control: |
Stand-alone; DMX; IR remote control; quick select potentiometer for brightness and color temperature; master/slave function; sound to light via microphone; QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional) |
| Preprogrammed in: |
Light Captain; Colorchief |
| Projection: |
Flicker-free |
| Beam angle: |
40° |
| Beam angle (1/2 peak): |
40° |
| Beam angle (1/10 peak): |
75° |
| Color temperature: |
2400K - 5000K adjustable |
| Color rendering index (CRI): |
94 Ra |
| Illuminance in Lux (lx): |
Warm white (WW) 1m: 928 lx, 3m: 123 lx, 6m: 36 lx
Cold white (CW) 1m: 1662 lx, 3m: 220 lx, 6m: 65 lx
All 1m: 2522 lx, 3m: 331 lx, 6m: 97 lx |
| Housing color: |
Black |
| Attachment system: |
Mounting bracket |
| Display type: |
4 digit 7-segment LED display |
| Material: |
Metal; aluminum casting; plastic |
| Dimensions: |
Width: 26,6 cm
Depth: 16,95 cm
Height: 19,4 cm |
| Weight: |
3,57 kg |
| Noise classification: |
Class 2 (slight noise) |
| Photobiological safety: |
Risk Group 0 |
| Power cord |
| Cable construction: |
3 x 1,0 mm² H05RN-F |
| Cable length: |
Approx. 1,2 m |
| Remote control |
| Battery: |
1 x button cell 3.0 V CR2025 lithium manganese built-in |
| Barndoor |
| Material: |
Metal, 0,8 mm |
| Mounting bracket |
| Diameter mounting holes: |
1 x Ø11mm; 2 x Ø8mm |
| Material: |
Metal, 2,5 mm |
| Legal specifications |
| Special product: |
Not designed for household room illumination |
| Intended use: |
Show effect lighting |
| Item information |
Value |
| Shipping weight: |
5,20 kg
|
| Item weight: |
4,00 kg
|
| Dimensions
( Length × Width × Height ):
|
215,00 × 30,00 × 315,00 cm |
